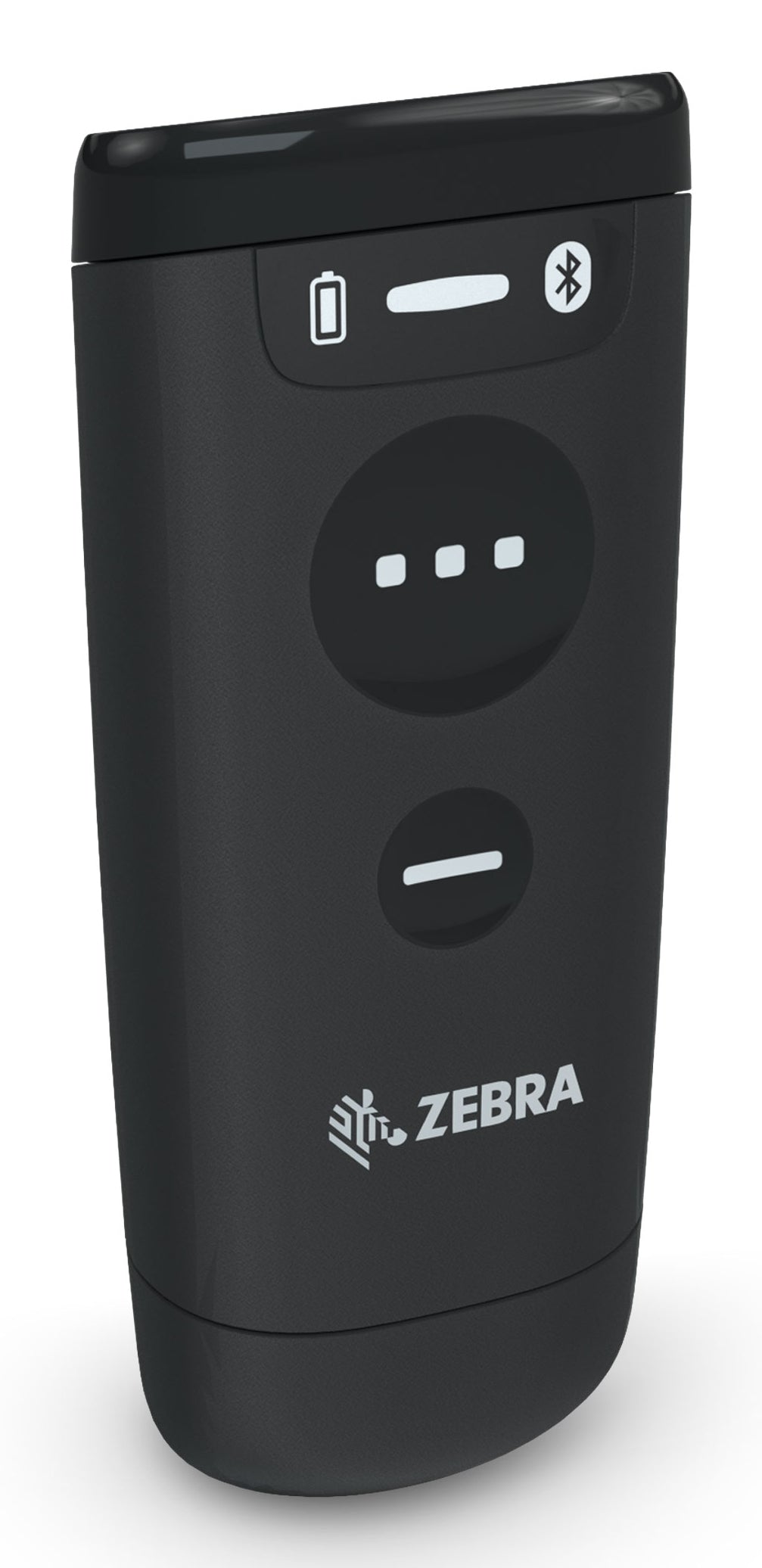

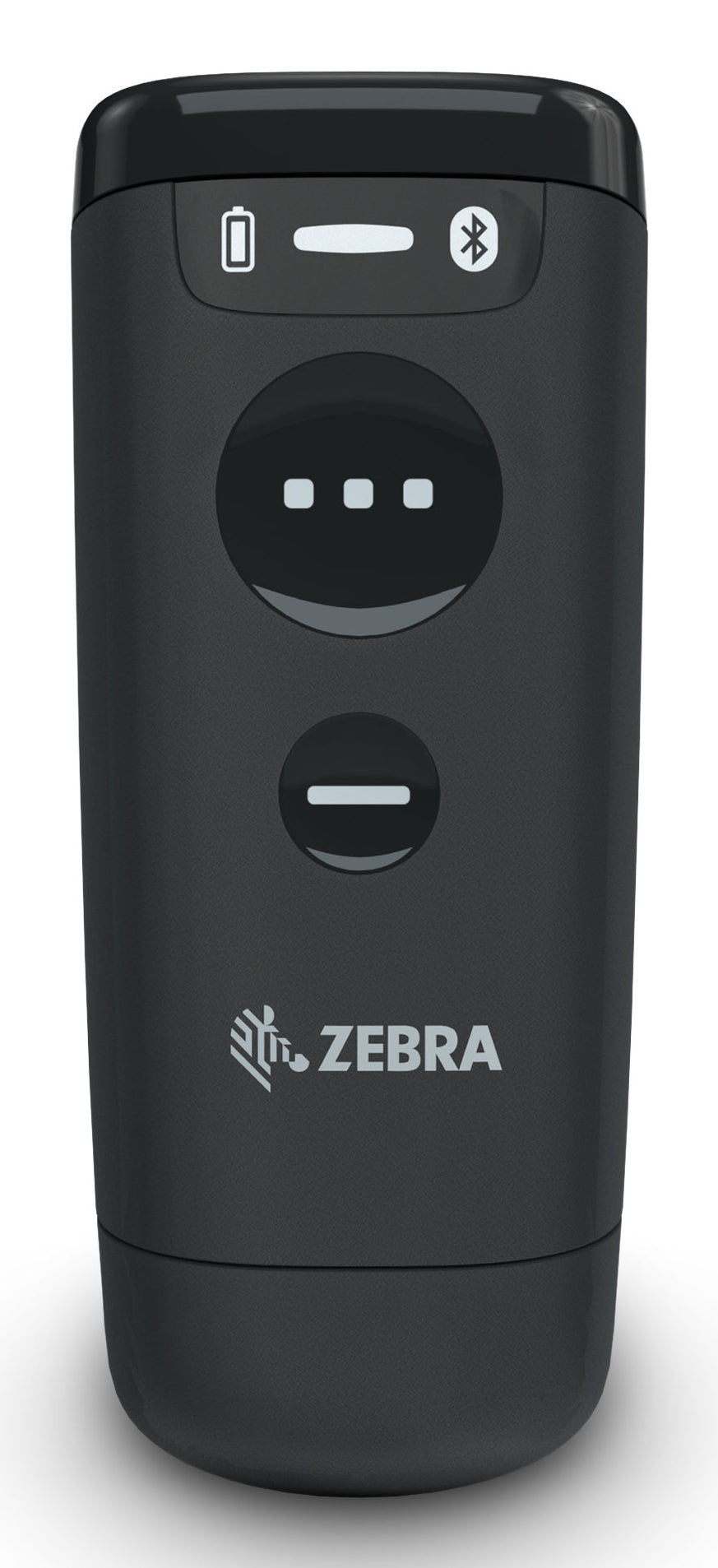

The ultra-versatile CS60 Companion scanner adapts to any workflow. As a cordless scanner, it is small enough to tuck in a pocket and offers the latest mobile technology including contactless charging. As a corded scanner, it provides compact scanning for the checkout counter, self-service kiosk and more.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,EAN 128,EAN 2,EAN 5,EAN-13,EAN-8,GS1 DataBar,MSI-Plessey,U.P.C.,UPC-A,UPC-E,UPC-E0,UPC-E1
- 2D (matrix & stacked) barcodes supported: Aztec Code,Composite Codes,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
- Sensor type: LED
- Optical sensor resolution (W x H): 1280 x 960 pixels
- Horizontal field of view: 45 °
- Vertical field of view: 34 °
- Light levels (direct sunlight): 0 - 108000 lx
- Tilt reading angle: 0 - 360 °
- Pitch reading angle: -60 - 60 °
- Yaw reading angle: -60 - 60 °
Ports & interfaces
- Connectivity technology: Wireless
- Standard interfaces: Bluetooth
- Wireless range: 100 m
- Bluetooth Low Energy (BLE): Yes
- Bluetooth version: 5.0
Performance
- Product colour: Black
- International Protection (IP) code: IP65
- LED indicators: Yes
- Buzzer: Yes
- Ambient lighting: Yes
- Vibration function: Yes
Power
- Power source type: Battery
- Battery technology: Lithium Polymer (LiPo)
- Battery capacity: 745 mAh
- Number of reads per charge: 13000
- Battery life: 18 h
- Charging time: 3 h
Weight & dimensions
- Width: 18 mm
- Depth: 43 mm
- Height: 9 mm
- Weight: 83 g
Packaging data
- Charging base: Yes
Operational conditions
- Storage relative humidity (H-H): 5 - 95 %
- Drop resistance: 1.8 m
- Storage temperature (T-T): -40 - 70 °C
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 5 - 95 %
Technical details
- Warranty period: 3 year(s)
- Compliance certificates: Mfi,REACH,RoHS,Trade Agreements Act (TAA)
