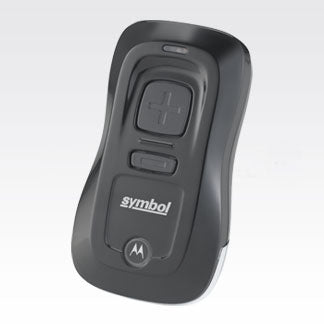

The innovative Motorola CS3000 Series enables enterprises to easily implement 1D laser scanning where either mobility or the cost and size of a traditional scanning device is an inhibitor. The tiny device is affordably priced and fits in a pocket or on a lanyard. The CS3000 can be utilized in standalone mode for the batch scanning of bar codes, while the CS3070 offers batch mode as well as real-time bar code data transmission to a host application via a wireless Bluetooth® connection to smartphones, laptops and more. The result is a new level of affordability for 1D scanning — and the ability to streamline, error-proof and simplify more business processes.
Flexible mobile 1D laser scanner
A mobile bar code scanner with two modes of operation: batch for uploading data to a host at a later time or real-time capture and transmission to a host application via a wireless Bluetooth connection to smartphones, PDAs and laptops
Long battery life
A 24-hour batch/12-hour Bluetooth mode battery life insures well over single shift scanning performance on a charge
Simple two button design
Easy to hold and use — almost no training required
Small and lightweight
Fits in a pocket or on a neck lanyard and weighs only 2.45 oz./70 gm
Easy to integrate with a host device
Batch USB connectivity or wireless Bluetooth® enables compatibility with virtually any host device
512MB non-volatile memory
Provides the capacity to store over a million scans and ensures the data is retained — ideal for virtually any batch operation
Superior scanning performance
Easy and intuitive to use — just point, click and scan; enables easy capture of even dirty, damaged and poor quality bar codes
Enterprise durability: 4 ft./1.2 m drop specification; 250 tumbles (500 drops) @ 1.64 ft./0.5 m
Ensures reliable operation despite the inevitable drops and bumps in real world use.
Scanning
- Type: Fixed bar code reader
- Scanner type: 1D
- 2D (matrix & stacked) barcodes supported: Not supported
- Sensor type: Laser
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: USB
Performance
- Product colour: Black
- Certification: FCC
Power
- Power source type: USB
- Battery capacity: 750 mAh
- Input voltage: 5 V
- Power consumption: 500 mA
Weight & dimensions
- Width: 49.5 mm
- Depth: 86.5 mm
- Height: 22 mm
- Weight: 70 g
Operational conditions
- Operating relative humidity (H-H): 10 - 95 %
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
Logistics data
- Harmonized System (HS) code: 84716070
Other features
- Maximum operating distance: 10 m
- Safety: EN 60825-1, IEC 60825-1, 21CFR1040.10
- Dimensions (WxDxH): 49.5 x 86.5 x 22 mm
