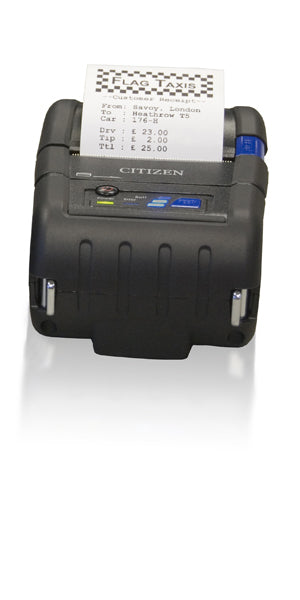

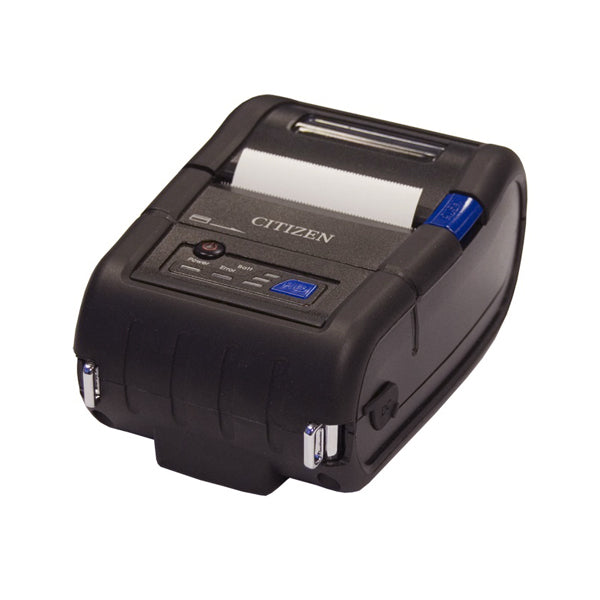

The CMP-20II mobile printer provides compact and robust printing virtually anywhere, with both Bluetooth and WiFi connectivity. Quick and simple to use, the CPM-20II is designed to save you time when printing 2 inch wide mobile receipts. Fast operation and reliable printing is assured, with drop-in paper loading and paper out indicators, simple feed paths to eliminate the risk of jamming, and an integral tear bar to cut paper to the required length.
Printing
- Print technology: Thermal
- Type: Mobile printer
- Maximum resolution: 203 x 203 DPI
- Print speed: 80 mm/sec
Paper handling
- Maximum printing width: 48 mm
- Maximum roll diameter: 48 mm
- Supported paper width: 58 mm
- Printing media thickness: 65 µm
Ports & interfaces
- Connectivity technology: Wired & Wireless
- USB port: Yes
- USB 2.0 ports quantity: 1
- USB connector: Mini-USB Type-B
- Serial interface: Yes
- Bluetooth: Yes
- Serial ports quantity: 1
- Standard interfaces: Bluetooth,Serial,USB
Network
- Ethernet LAN: No
- Wi-Fi: No
Features
- Page description languages: CPCL-native,ESC/POS
Design
- Product colour: Black
Power
- Power source type: Battery
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Battery technology: Lithium-Ion (Li-Ion)
- Battery life (max): 1.5 h
- Battery voltage: 7.4 V
- Power consumption: 1200 mA
- Battery recharge time: 2 h
Operational conditions
- Operating relative humidity (H-H): 35 - 95 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
- Operating temperature (T-T): -10 - 50 °C
System requirements
- Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind
- Mobile operating systems supported: Android,Windows Mobile 5,Windows Mobile 6,iOS
Weight & dimensions
- Width: 96 mm
- Depth: 136 mm
- Height: 58 mm
- Weight: 442 g
Packaging data
- Cables included: Serial
Packaging content
- Quick start guide: Yes
Logistics data
- Harmonized System (HS) code: 84433210
Other features
- Rechargeable: Yes
- International Protection (IP) code: IP42
