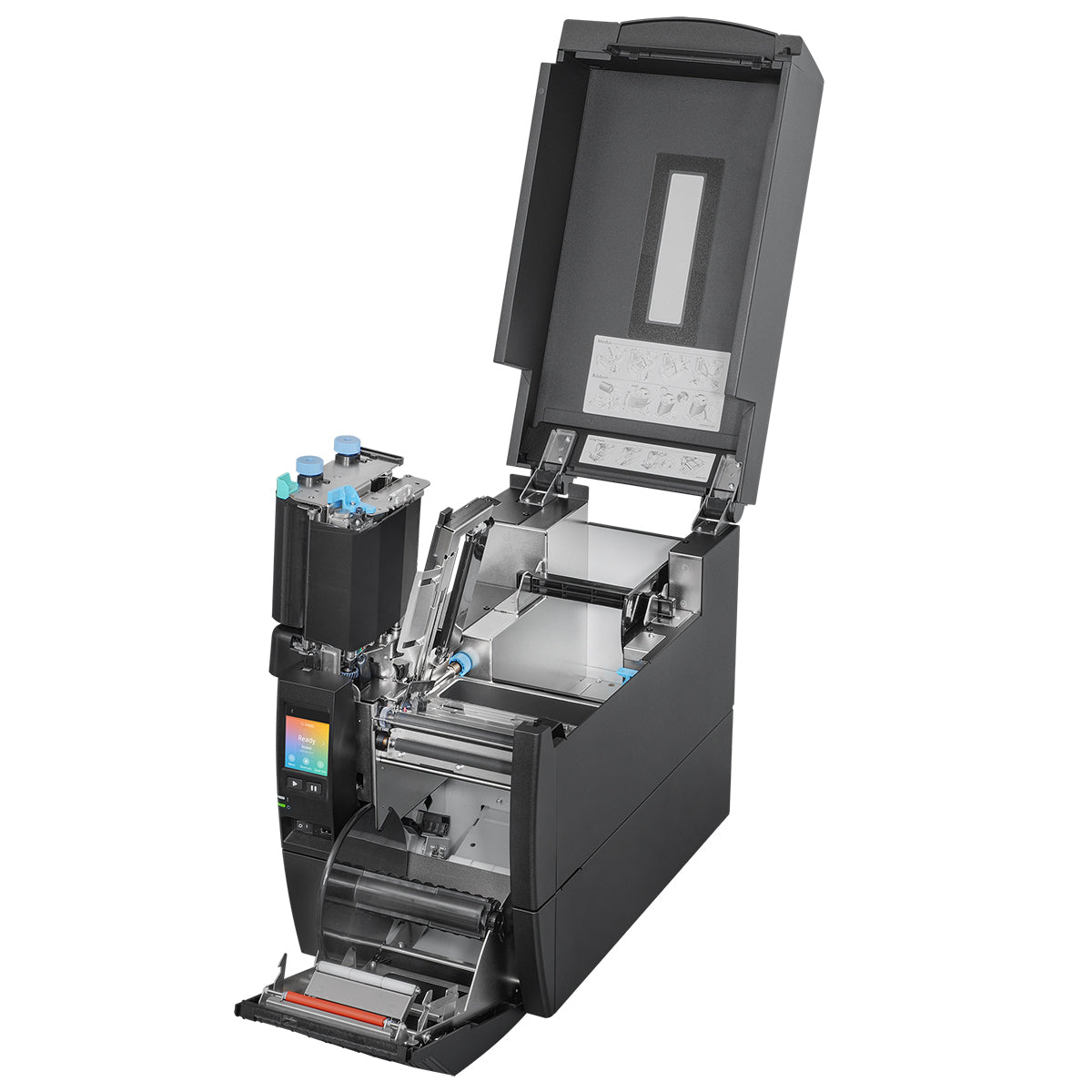

Internal peeler and rewinder
The internal peeler can be set up to automatically peel labels from the media backing without any extra manual work.
Furthermore, the rewinder automatically rewinds labels onto the core, eliminating label waste as well as setting up labels for efficient batch printing.
Robust and Durability
Outer case : Full metal chassis(Main components)
Metal construction provides strength and durability for a reliable performance.
Reliable design with 20 years experience.
Front-Open Structure：Top class usability in industrial category
All operations are possible from the front face of the printer.
Setting, adjustment, and replacement can be done quickly, reducing total work time.

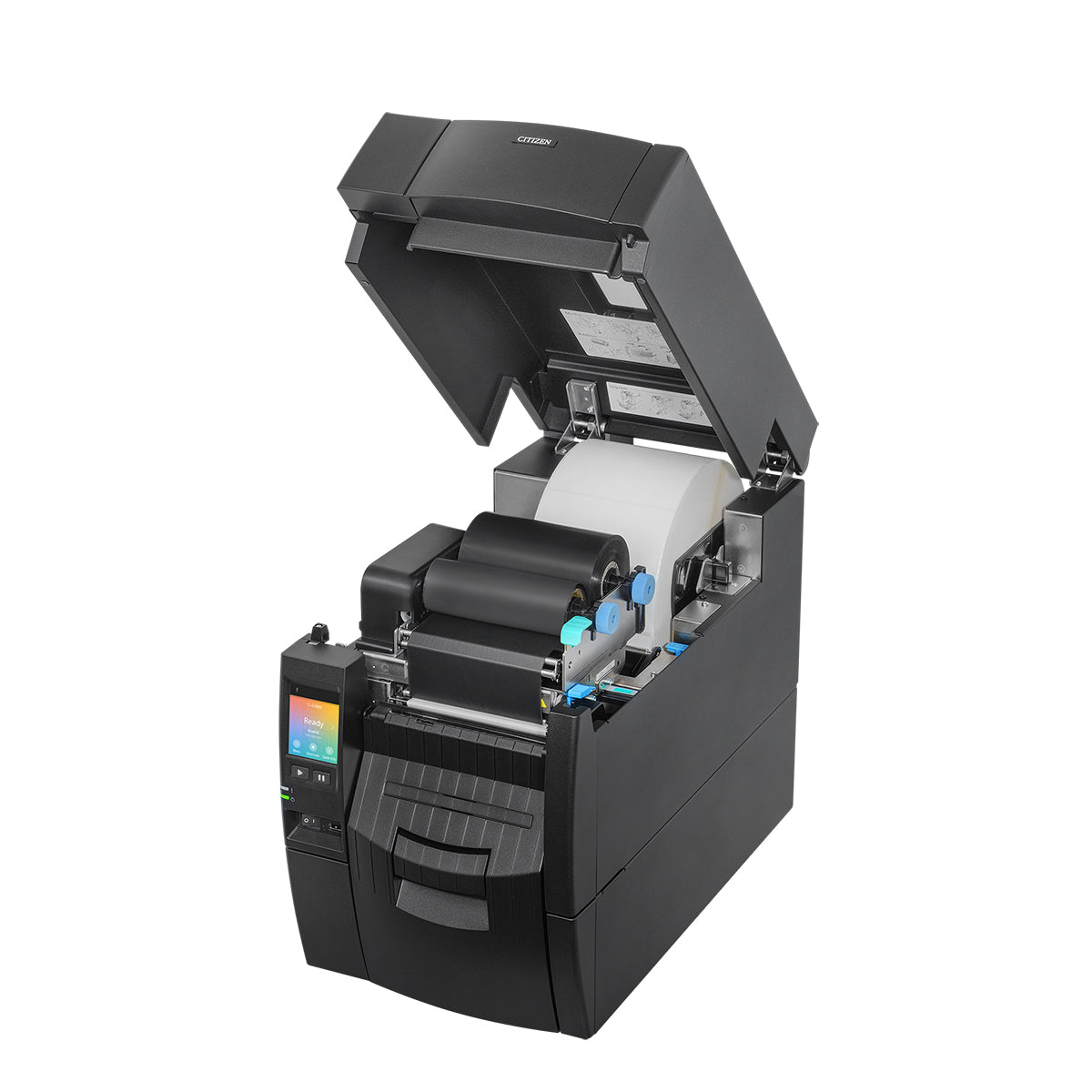

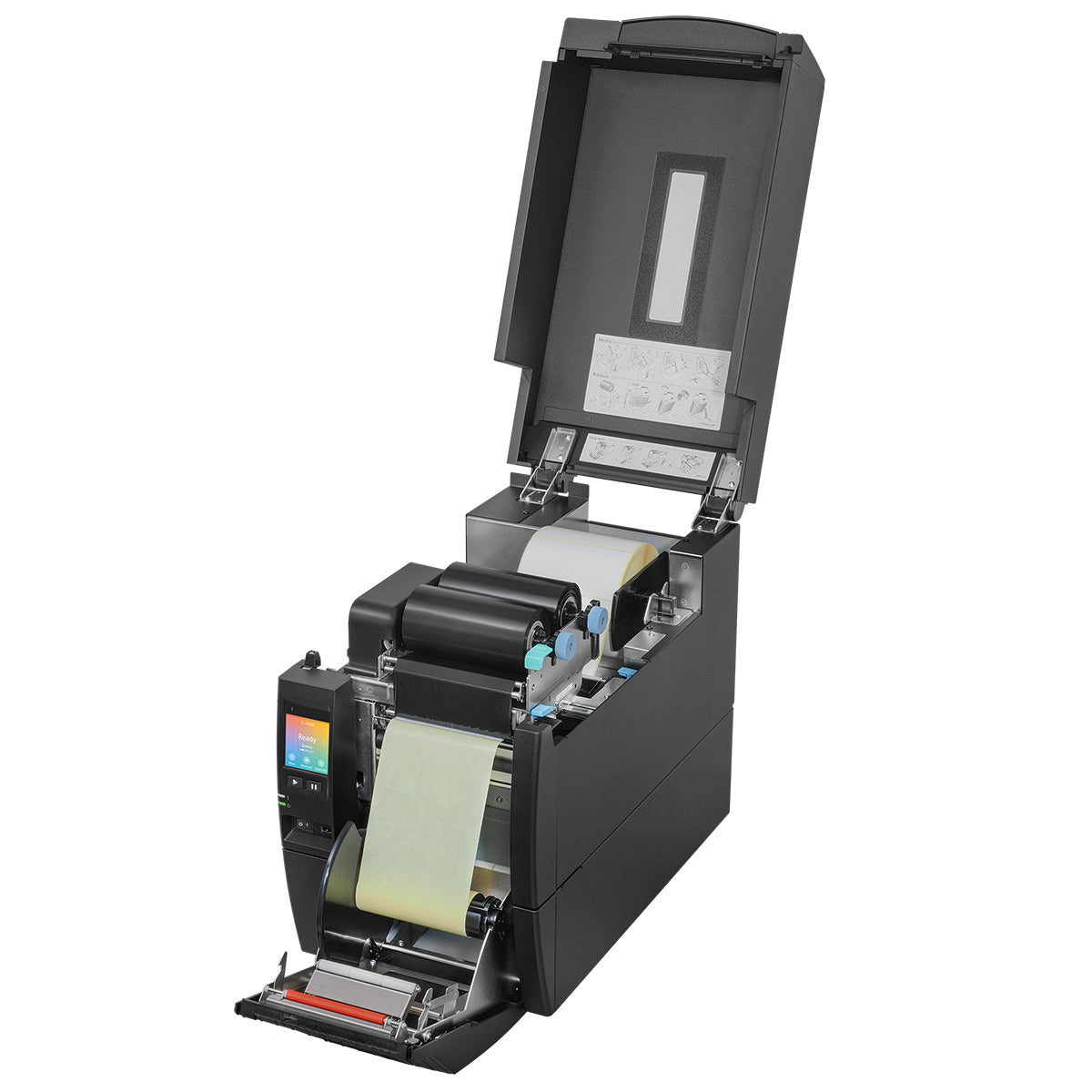

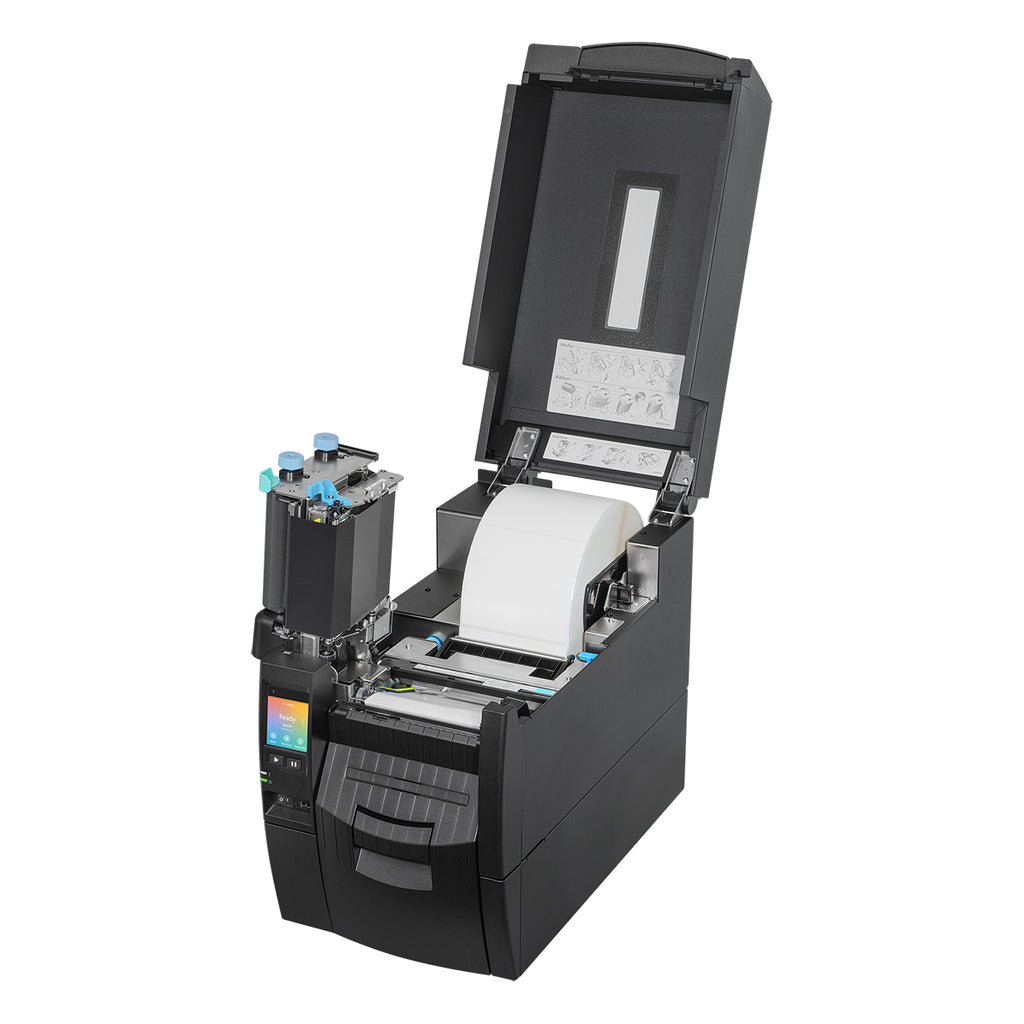

Wide open head, Flat Media Path:
Setting is extremely easy as the head opens wide with simple paper path.
Printing
- Print technology: Direct thermal / Thermal transfer
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 254 mm/sec
- Maximum printing width: 104 mm
Paper handling
- Autocutter: Yes
- Ribbon width: 86.5 mm
- Media thickness: 63.5 - 254 mm
- Maximum media length: 2539.74 mm
- Maximum roll diameter: 200 mm
Ports & interfaces
- Connectivity technology: Wired
- Wi-Fi standards: 802.11b,802.11g
- USB port: Yes
- USB 2.0 ports quantity: 1
- Parallel ports quantity: 1
- RS-232 ports: 1
Performance
- Page description languages: EPL2,ZPL II
Design
- Product colour: Grey
- Built-in display: Yes
- Display: LCD
- Control type: Buttons
System requirements
- Minimum RAM: 256 MB
- Linux operating systems supported: Yes
- Server operating systems supported: Yes
- Windows operating systems supported: Windows 10,Windows 7,Windows 8
- Mac operating systems supported: Yes
Weight & dimensions
- Width: 255 mm
- Depth: 489 mm
- Height: 385 mm
- Weight: 18500 g
Technical details
- Sustainability certificates: ENERGY STAR
