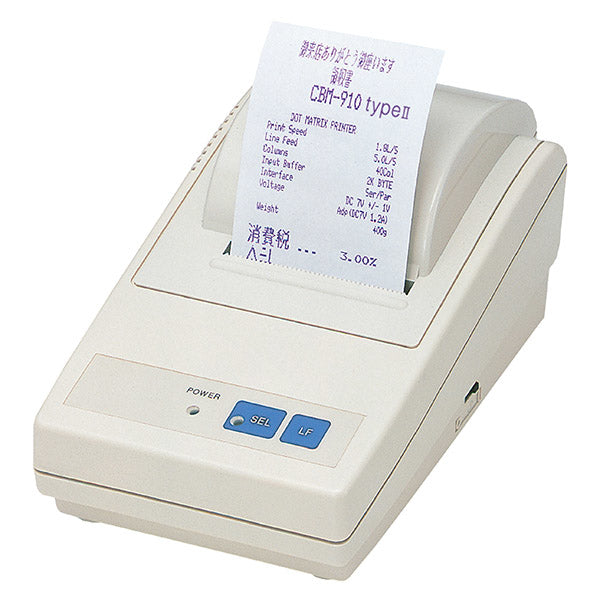

The CBM910II is one of the smallest POS printers available. Fitting into the palm of your hand, this proven and reliable serial dot matrix printer is ideal for bankcard, POS and coin counting applications. Built for a long trouble-free life, with a MCBF of at least 1.5 million lines, the capability of bit image graphics printing and a memory switch, the CBM910II offers a versatile, cost effective and compact solution.
Printing
- Print technology: Dot matrix
- Type: POS printer
- Colour: No
- Print speed: 2.5 lps
- Character size: 1.62 x 2.4 mm
- Character sets: Katakana,PC437,PC858,PC860,PC863,PC865,WPC1252
Paper handling
- Roll dimensions: 57.5 x 60
- Maximum roll diameter: 60 mm
- Printing media thickness: 0.13 µm
Ports & interfaces
- Connectivity technology: Wired
- Serial interface: Yes
- Serial interface type: RS-232
- Standard interfaces: RS-232
- Serial ports quantity: 1
Network
- Ethernet LAN: No
- Wi-Fi: No
Features
- Ribbon life: 200 million characters
- Certification: CE Marking/TUV- GS/FCC class A/VCCI class A
Design
- Product colour: White
Power
- Power source type: AC
- AC input voltage: 230 V
- Operating current: 1.6 A
Operational conditions
- Storage relative humidity (H-H): 10 - 90 %
- Operating relative humidity (H-H): 35 - 85 %
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
System requirements
- Windows operating systems supported: Windows 10,Windows 7,Windows 8,Windows Vista,Windows XP Home,Windows XP Professional
Weight & dimensions
- Width: 106 mm
- Depth: 180 mm
- Height: 88 mm
- Weight: 470 g
Packaging content
- AC adapter included: Yes
- Quick start guide: Yes
Print technology
- Column capacity: 24
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Voltage: 7 V
Other features
- LED indicators: Yes
- Buffer size: 2 KB
