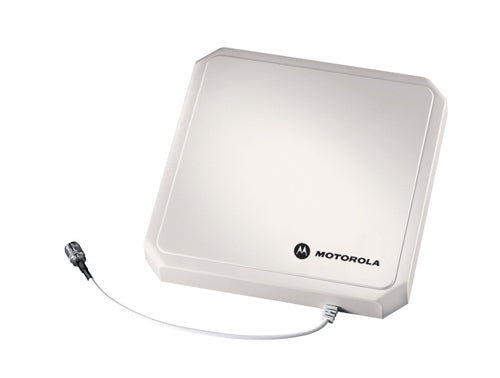

This single port antenna offers the maximum flexibility and performance required to meet the needs of enterprises around the world. Compatible in virtually any global market, Motorola's AN480 can be installed throughout the enterprise from the manufacturing and warehouse floors to the dock doors and outside in the yard.
The AN480 antenna offers the environmental sealing required for indoor and outdoor use. Its extremely low axial ratio delivers a more uniform gain for superior performance.
Performance
- Antenna gain level (max): 6 dBi
- Impedance: 50 Ω
- Horizontal beam width: 65 °
- Vertical beam width: 65 °
Features
- Antenna type: Directional antenna
- Antenna connector type: N-type
- Voltage Standing Wave Ratio (VSWR): 1.22
- Power handling: 2 W
- Purpose: Outdoor
- Product colour: White
- Certification: RoHS, UL
Weight & dimensions
- Width: 259.1 mm
- Depth: 259.1 mm
- Height: 50.3 mm
- Weight: 1130 g
Logistics data
- Harmonized System (HS) code: 85177100
Other features
- Frequency range: 865 - 868 MHz
