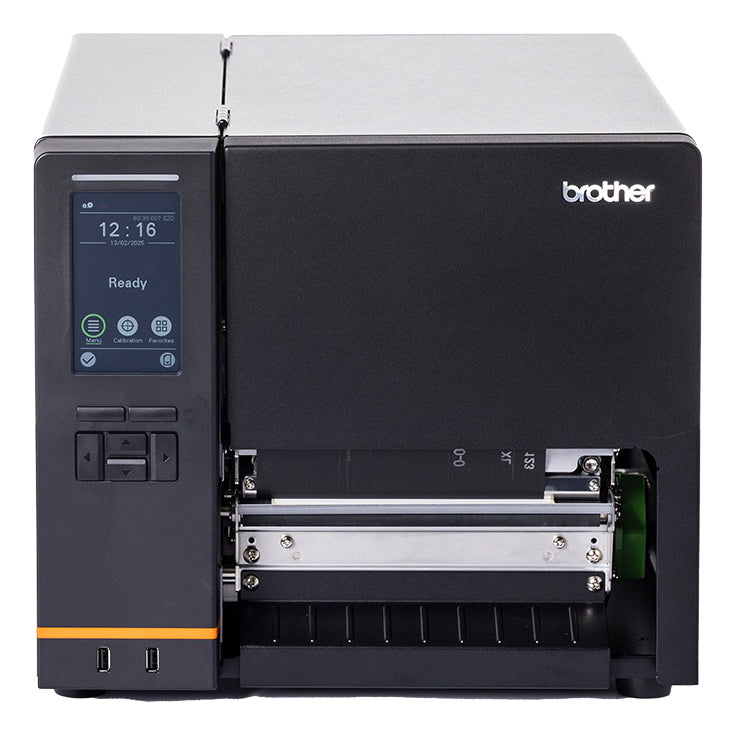

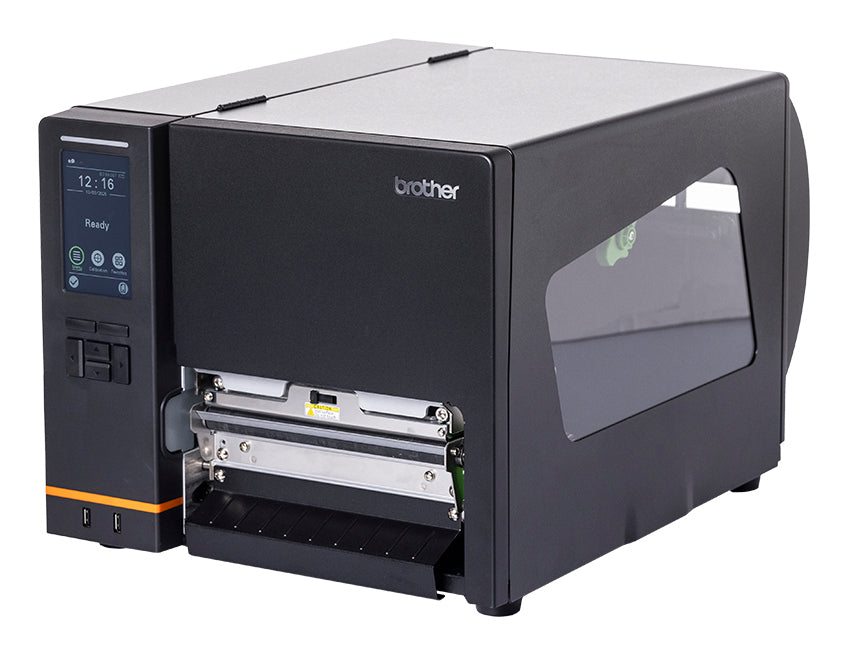

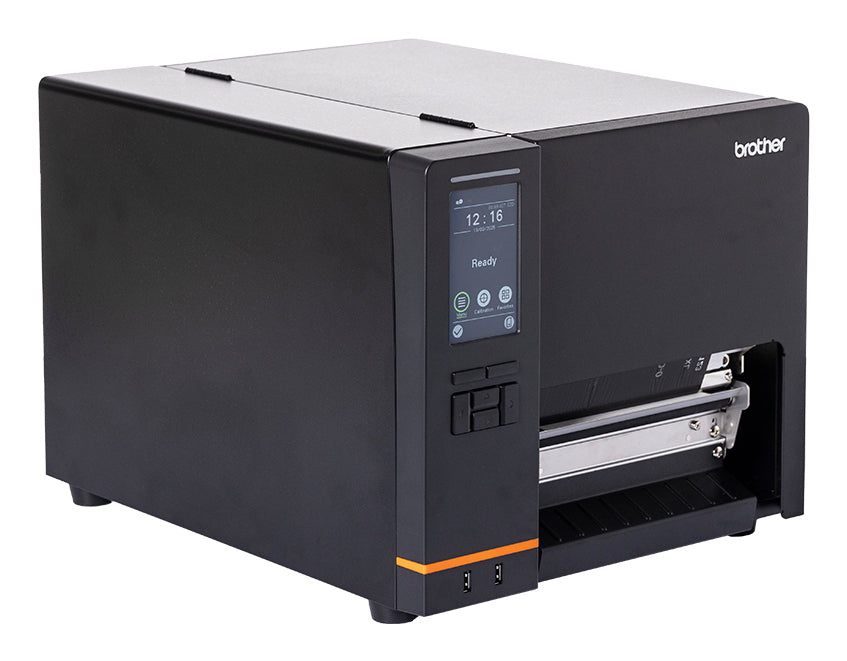

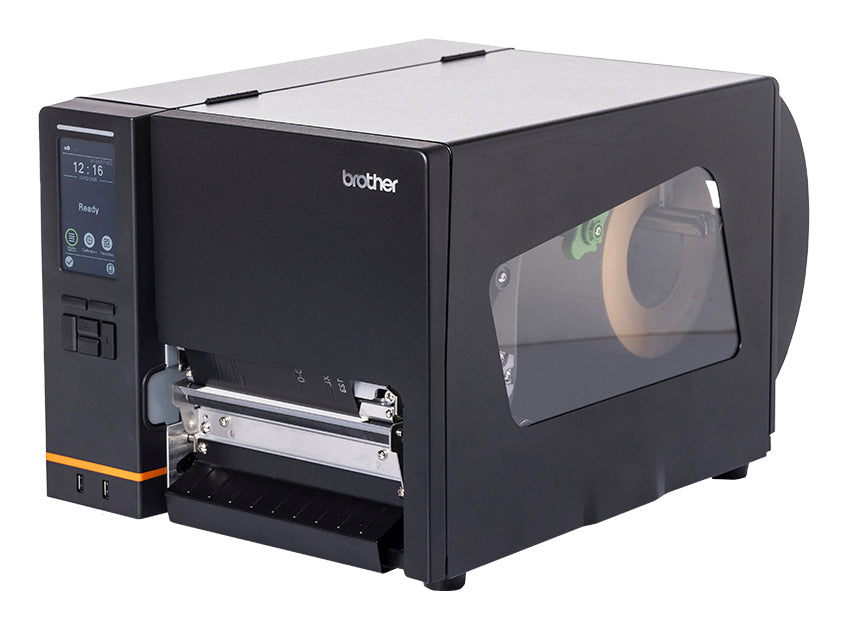

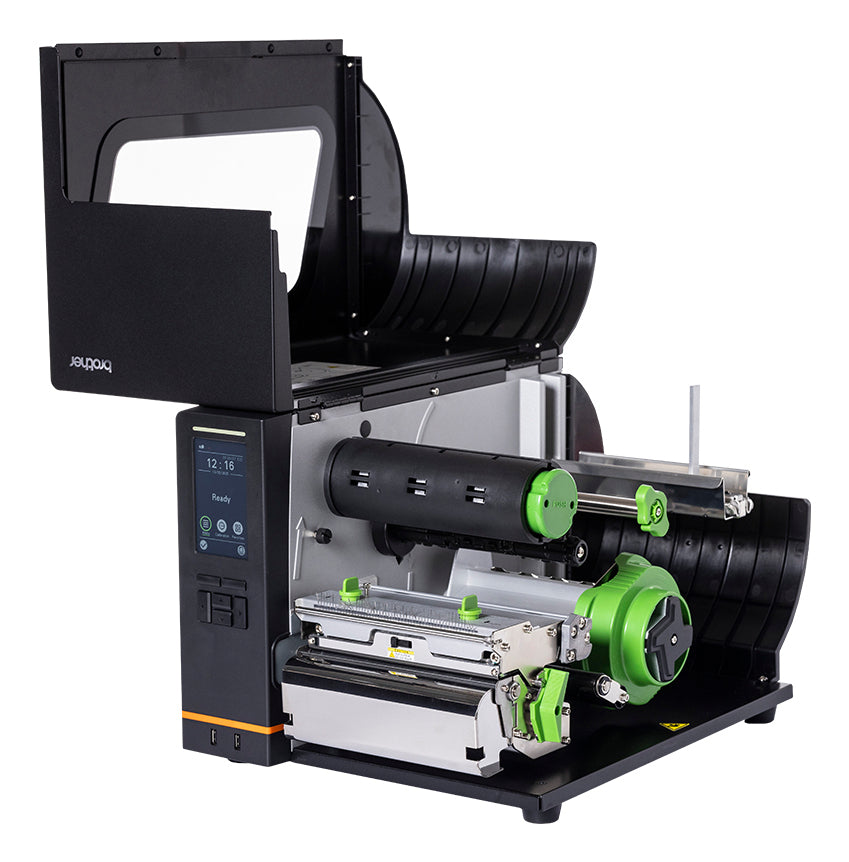

The industry of transport and logistics are constantly looking for productivity advances, the TJ-6421TN incorporates modern label printing technology with traditional product durability.

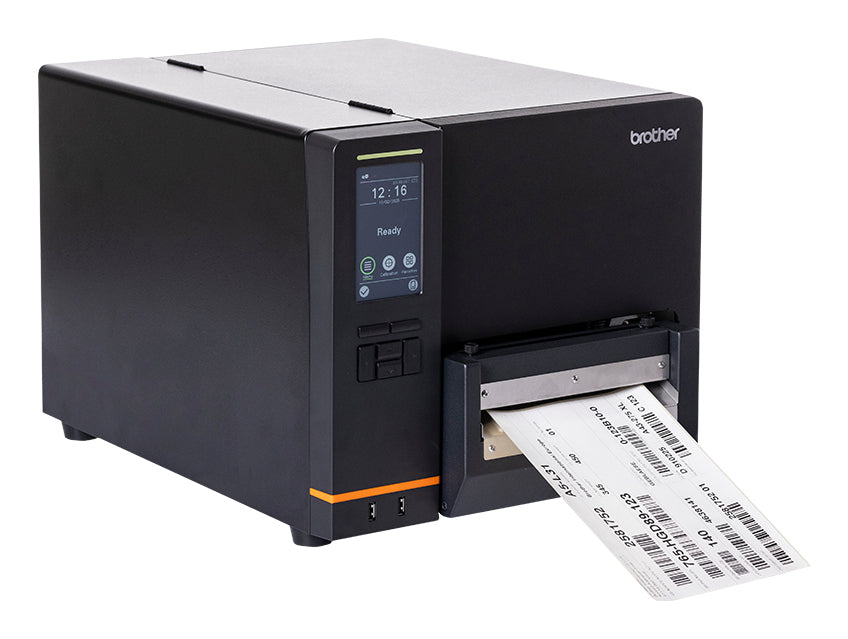

The TJ-6421TN is built to last within tough working conditions, deliver on performance and print high-quality labels. This label printer becomes part of the team assisting floor staff with picking orders, pallet labels and manufacturing labelling.
This 6-inch label printer was designed for SSCC product labelling so that logistics companies can keep up with demands of tracking and traceability.
Printing
- Print technology: Direct thermal / thermal transfer
- Colour: Yes
- Maximum resolution: 203 x 300 DPI
- Print speed: 304.8 mm/sec
- Print speed: 12 lpm
- Maximum printing width: 172.7 mm
- Minimum print length: 14732 mm

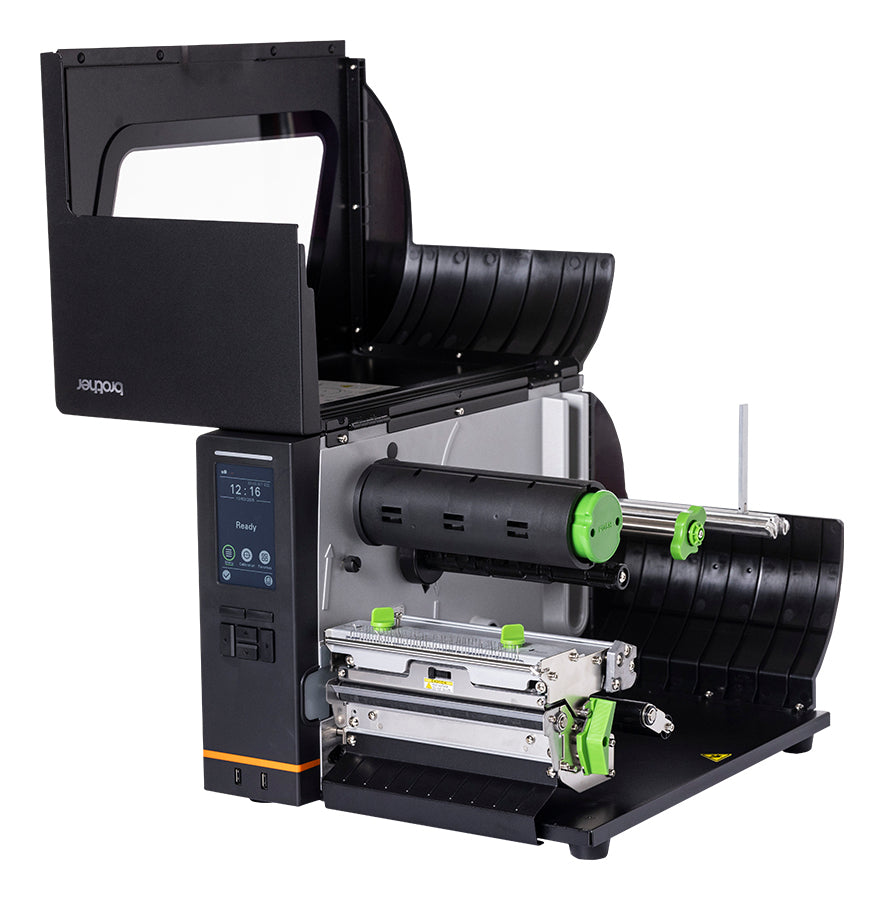

Paper handling
- Ribbon width: 178 mm
- Ribbon length: 450 m
- Maximum roll diameter: 208 mm
- Core diameters supported: 38.1 mm (1.5"),76.2 mm (3")

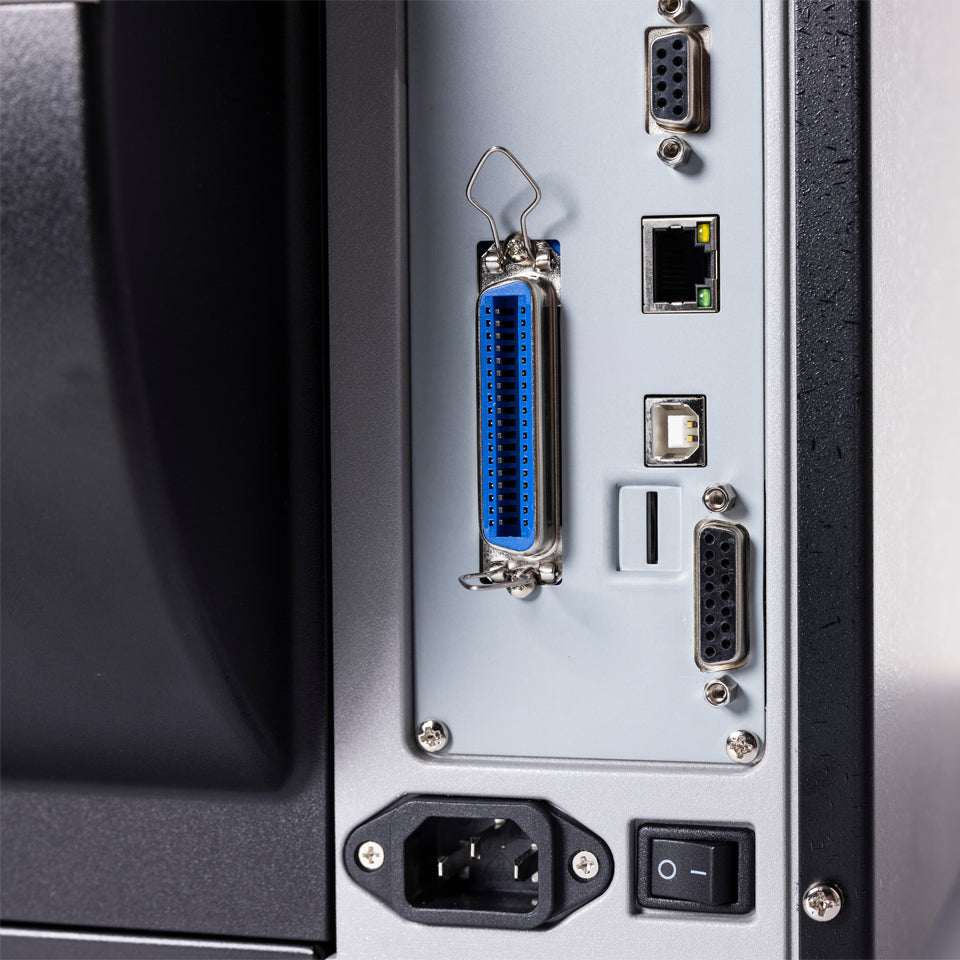

Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes

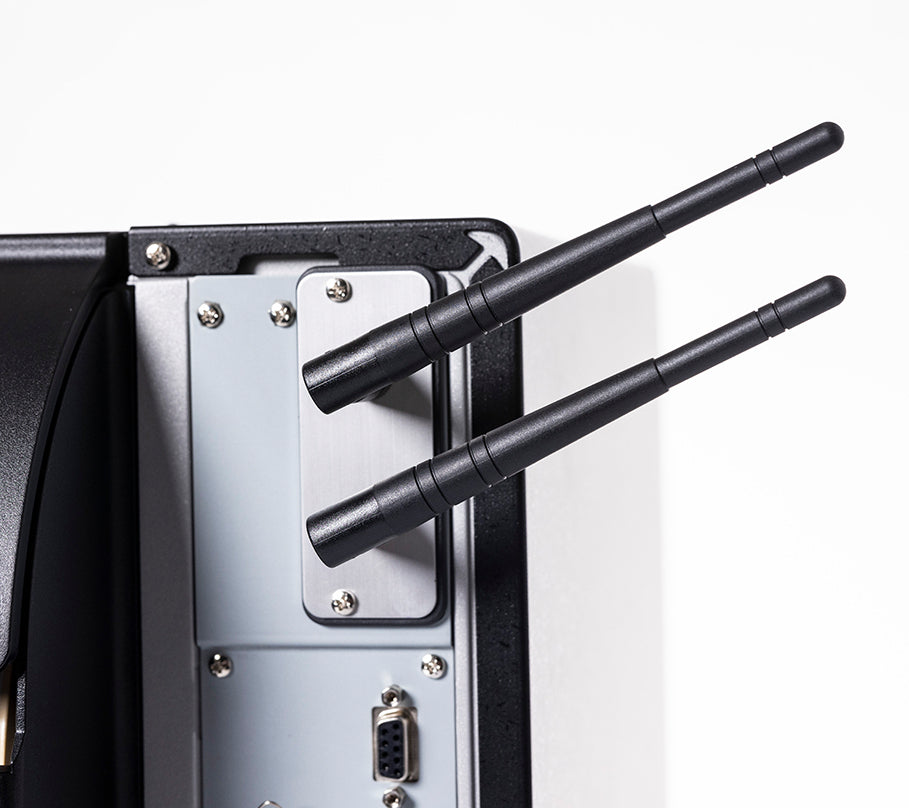

- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
- Bluetooth: Yes
- Bluetooth version: 4.2
- USB port: Yes
- USB 2.0 ports quantity: 1
Performance
- Page description languages: DPL,EPL2
- Internal memory: 256 MB
- Flash memory: 512 MB
- Built-in barcodes: AZTECCODE,China post,Codablock F,Code 11,Code 128 (A/B/C),Code 39,Code 49,Code-128 Codabar Library,Code128UCC,Deutsche Post Identcode,Deutsche Post Leitcode,EAN128,EAN13,EAN14,EAN8,GS1 DataBar,GS1 DataMatrix,ITF-14,Industrial 2/5,Interleaved 2/5,LOGMARS,M
Design
- Product colour: Black
- Display: LED
- Display diagonal: 4.3 "
- Control type: Buttons
- On Screen Display (OSD) languages: DEU,ENG,ESP,FRE,ITA,POL
System requirements
- Windows operating systems supported: Windows 10,Windows 11
- Mobile operating systems supported: Android 13.0,iOS 12,iOS 16
- Linux operating systems supported: Yes
- Mac operating systems supported: Yes
- Server operating systems supported: SUSE Linux Enterprise Server 12
Operational conditions
- Operating relative humidity (H-H): 25 - 85 %
- Storage relative humidity (H-H): 10 - 90 %
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 60 °C
Weight & dimensions
- Width: 357 mm
- Depth: 514 mm
- Height: 313 mm
- Weight: 17900 g
Packaging content
- Cables included: AC,USB
- Bundled software: BarTender Ultra Lite Edition
Technical details
- Warranty period: 5 year(s)
