Elevate your applications with Elo’s 5554L 55‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 5554L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 55‑inch tablet.
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.
Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

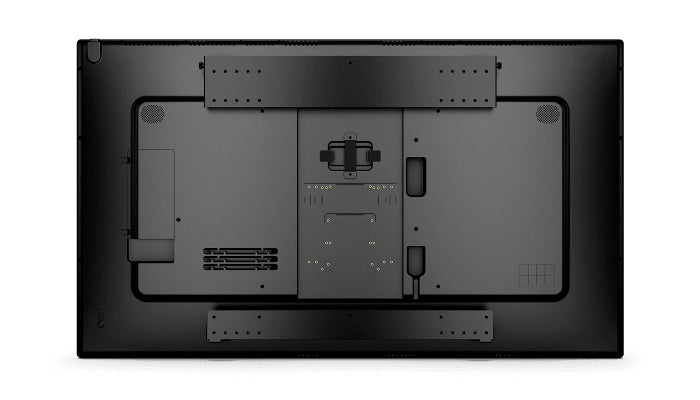

Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 5554L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 5554L for diverse international markets.
Display
- Display diagonal: 54.6 "
- Display technology: LCD
- LED backlight: Yes
- Panel type: LCD
- Display resolution: 3840 x 2160 pixels
- Display brightness: 430 cd/m²
- HD type: 4K Ultra HD
- Touchscreen: Yes
- Multi-touch: Yes
- Number of simultaneous touchpoints: 40
- Native aspect ratio: 16
- Response time: 8 ms
- Contrast ratio (typical): 1100
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 1.07 billion colours
- Active display area (W x H): 1209.6 x 680.4 mm
- Horizontal scan range: 30 - 135 kHz
- Vertical scan range: 24 - 64 Hz
Ports & interfaces
- HDMI ports quantity: 2
- HDMI version: 2.0
- DVI port: No
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- USB port: Yes
- USB ports quantity: 2
- USB connector type: Mini-USB A,USB Type-A
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Wi-Fi: No
Audio
- Built-in speaker(s): Yes
- Number of built-in speakers: 2
- RMS rated power: 20 W
Design
- Product design: Interactive flat panel
- Product colour: Black
- Placement supported: Indoor
- VESA mounting: Yes
- Panel mounting interface: 400 x 400,600 x 600 mm
Performance
- Purpose: Universal
- Operating hours (hours/days): 24/7
- HDCP: Yes
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 111.87 W
- Power consumption (standby): 0.38 W
- Power consumption (sleep): 1.52 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 1271.8 mm
- Depth: 742.6 mm
- Height: 60.2 mm
- Weight: 50000 g
Packaging data
- Package width: 1460 mm
- Package depth: 1040 mm
- Package height: 225 mm
- Package weight: 38520 g
Packaging content
- Cables included: AC,USB
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Certificates
- Certification: UL, FCC, cUL, IC (Canada), CB, CE, VCCI, RCM, CCC/CEL, China RoHS, NOM, UL60950, IK07
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- Maximum refresh rate: 60 Hz
