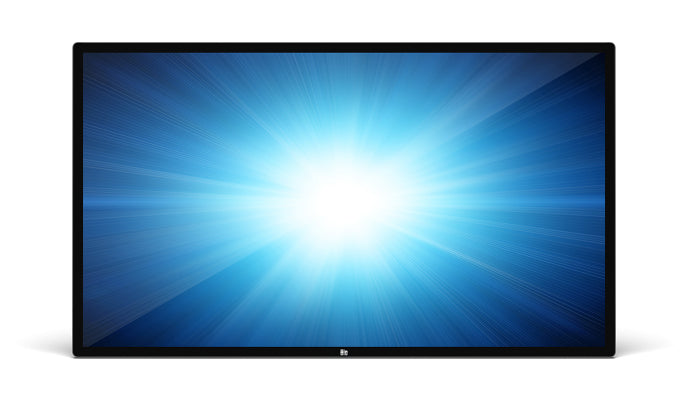

Elo's 55-inch, 4K touchscreen display adds interactivity to any environment. Perfect for everything from endless aisle and brand experiences to collaborative meetings, conferencing and whiteboarding, the 5553L offers a sleek, slim design built to withstand the rigors of continuous commercial use. Easily turn the display into a powerful, 55-inch, all-in-one, life-size tablet by adding an Elo computer module. Available with either PCAP (with anti-glare or clear glass with anti-friction) or infrared (with anti-glare) touch technologies, the professional-grade, large-format display integrates easily into any environment.
Display
- Display diagonal: 54.64 "
- Display technology: TFT
- Display resolution: 3840 x 2160 pixels
- Display brightness: 430 cd/m²
- HD type: 4K Ultra HD
- Touchscreen: Yes
- Multi-touch: Yes
- Number of simultaneous touchpoints: 40
- Native aspect ratio: 16
- Response time: 8 ms
- Contrast ratio (typical): 1100
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 1.073 billion colours
- Active display area (W x H): 1209.6 x 680.4 mm
- Horizontal scan range: 121.8 - 140 kHz
- Vertical scan range: 47 - 63 Hz
Ports & interfaces
- HDMI ports quantity: 3
- HDMI input ports quantity: 2
- HDMI output ports quantity: 1
- DVI port: No
- VGA (D-Sub) input ports: 0
- DisplayPorts quantity: 1
- USB port: Yes
- USB ports quantity: 2
- USB version: 3.2 Gen 1 (3.1 Gen 1)
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
Audio
- Built-in speaker(s): Yes
- Number of built-in speakers: 2
- RMS rated power: 20 W
Design
- Product design: Interactive flat panel
- Product colour: Black
- Placement supported: Indoor
- Orientation: Horizontal/Vertical
- VESA mounting: Yes
- Panel mounting interface: 400 x 400,600 x 600 mm
Performance
- Purpose: Universal
- On Screen Display (OSD): Yes
- HDCP: Yes
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 111.87 W
- Power consumption (sleep): 1.52 W
- Power consumption (off): 0.38 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 1271.8 mm
- Depth: 80 mm
- Height: 742.6 mm
- Weight: 36800 g
Packaging data
- Package weight: 46470 g
Packaging content
- Cables included: AC,HDMI,Serial,USB
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Certificates
- Certification: UL 62368-1 FCC (US) cUL, IC (Canada) CB (International safety) (IEC/EN60950-1+IEC/EN62368-1) CE (Europe) RCM (Australia) VCCI (Japan) CCC
Logistics data
- Harmonized System (HS) code: 85285210
Technical details
- Sustainability certificates: ENERGY STAR
