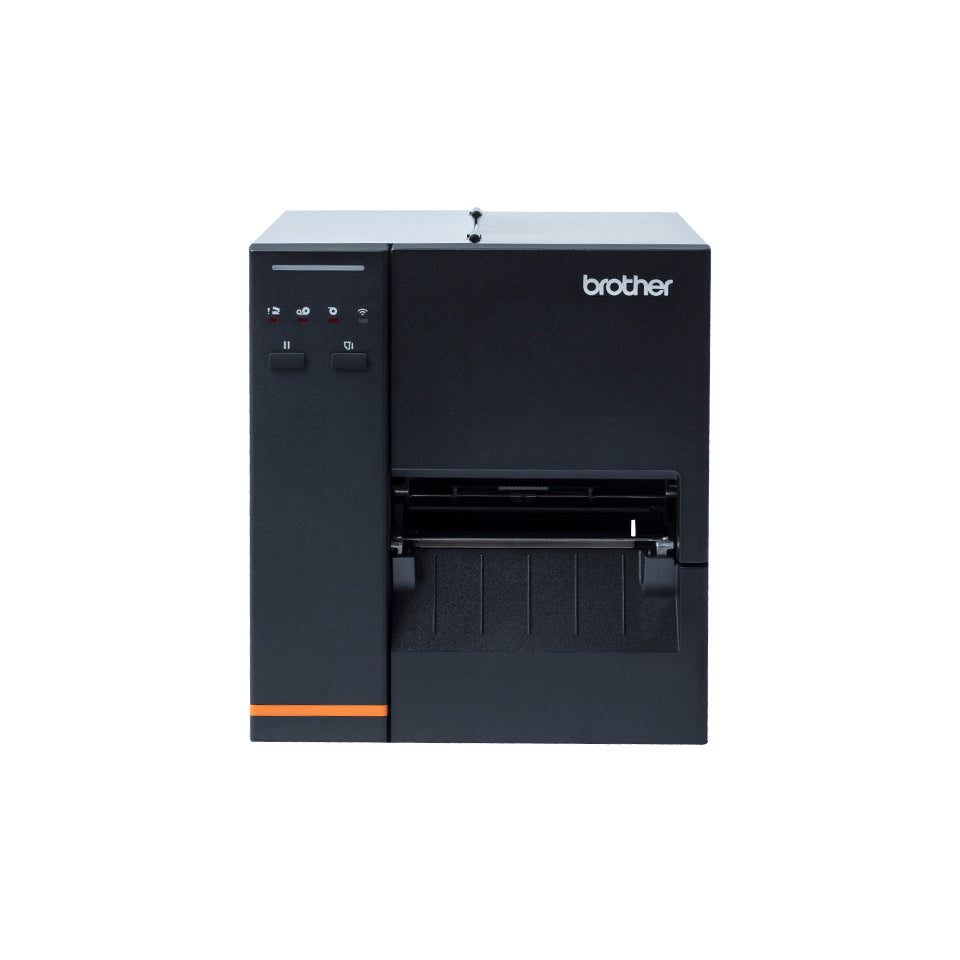

The Brother TJ-4005DN industrial label printer offers performance you can rely on when keeping up with increasing demand.
The high-volume direct thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large roll capacity and in-built durability.
With ZPL2 emulation compatibility and multiple connectivity options, the TJ-4005DN has been built with you in mind.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 152 mm/sec
- Maximum printing width: 107 mm
Paper handling
- Maximum media length: 25400 mm
- Maximum label width: 120 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: No
- USB port: Yes
- RS-232 ports: 1
Performance
- Internal memory: 128 MB
- Flash memory: 128 MB
- Built-in barcodes: CODABAR (NW-7),Code 11,Code 128 (A/B/C),Code 49,Code 93,Deutsche Post Identcode,Deutsche Post Leitcode,EAN128,EAN13,EAN14,EAN8,ITF-14,Interleaved 2/5,LOGMARS,MSI,POSTNET,TELEPEN,UPC-A,UPC-E
Design
- Product colour: Black
- Built-in display: No
- Display: No
- Control type: Buttons
System requirements
- Linux operating systems supported: Yes
- Windows operating systems supported: Windows 10,Windows 8.1
- Mac operating systems supported: Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15.3 Catalina,Mac OS X 10.2 Jaguar,Mac OS X 10.3 Panther,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks,Mac OS X 11.0 Big
- Server operating systems supported: Windows Server 2012 R2,Windows Server 2016
- Mobile operating systems supported: Android 10,Android 10.0,Android 11.0,Android 12.0,Android 5.0,Android 5.1,Android 6.0,Android 7.0,Android 7.1,Android 7.1.2,Android 8.0,Android 8.1,Android 9.0,iOS 10.0,iOS 11.0,iOS 11.4,iOS 12,iOS 13,iOS 13.4,iOS 14,iOS 14.5,iOS 9.0,iOS 9.1,iOS 9.2,iOS 9
Weight & dimensions
- Width: 370 mm
- Depth: 525 mm
- Height: 360 mm
- Weight: 9423 g
Packaging data
- Package weight: 11018 g
Packaging content
- Cables included: AC,USB
Logistics data
- Pallet gross height: 167 mm
- Pallet gross weight: 242400 g
- Master (outer) cases per pallet: 20 pc(s)
- Master (outer) cases per pallet layer: 5 pc(s)
- Layers per pallet: 4 pc(s)
- Products per pallet: 20 pc(s)
Technical details
- Pallet type: 1200 x 1000 mm
Other features
- Country of origin: Taiwan
