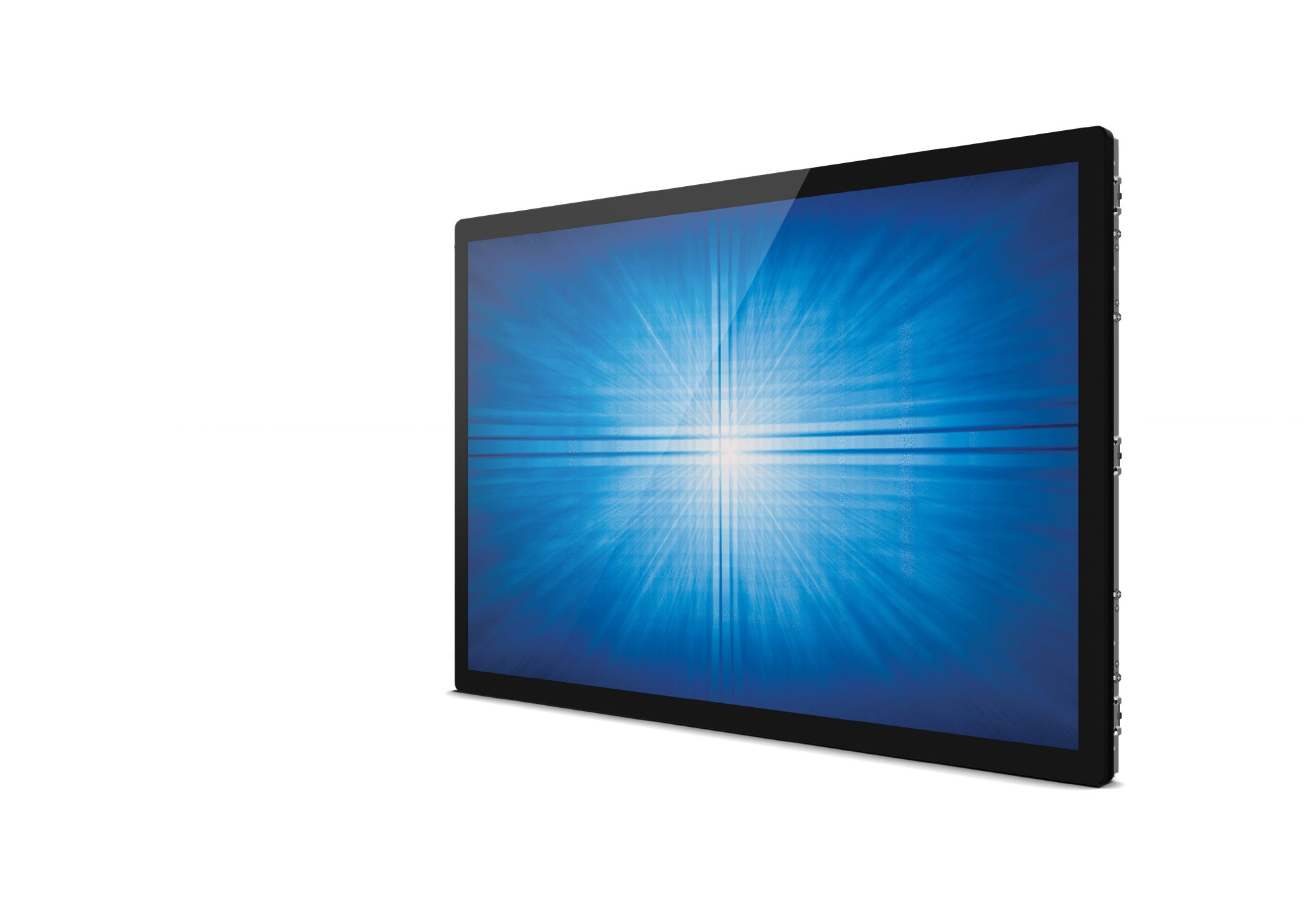

Elo's 4363L 43-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo’s commercial-grade interactive displays offer the versatility to add touch to your solution.
Brilliant, interactive TouchPro PCAP display.
The 4363L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.
Designed for easy integration.
Mount the 4363L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.
Get the viewing experience you want to see.
Whether viewing straight on or at an angle, close-up or from a distance, Elo’s touchscreen displays offer optimal clarity for the viewing experience.
Place your touchscreen behind an extra layer of protection.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Display
- Display diagonal: 42.5 "
- Display technology: LED
- Panel type: TFT
- Display resolution: 1920 x 1080 pixels
- Display brightness: 450 cd/m²
- HD type: Full HD
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 40
- Native aspect ratio: 16
- Response time: 8 ms
- Contrast ratio (typical): 4000
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 16.78 million colours
Ports & interfaces
- HDMI ports quantity: 2
- HDMI version: 1.4
- Ethernet LAN (RJ-45) ports: 1
Design
- Product colour: Black
- Screen shape: Flat
- VESA mounting: Yes
- Panel mounting interface: 400 x 400 mm
- Anti-glare screen: Yes
Performance
- On Screen Display (OSD): Yes
- HDCP: Yes
- Mean time between failures (MTBF): 50000 h
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Packaging data
- Package width: 1220 mm
- Package depth: 250 mm
- Package height: 790 mm
- Package weight: 23090 g
Packaging content
- Cables included: AC,HDMI,USB,VGA
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 90 %
Features
- Wall mountable: Yes
Other features
- Maximum refresh rate: 60 Hz
- Viewable size, vertical: 529.254 mm
- Digital vertical frequency: 47 - 63 Hz
- Depth (without stand): 66.4 mm
- Viewable size, horizontal: 940.86 mm
- Height (without stand): 587.5 mm
- Built-in microphone: No
- Weight (without stand): 17170 g
- Digital horizontal frequency: 31.5 - 80 kHz
- Built-in camera: No
