Interactive Display
Elevate your applications with Elo’s 4304L 43‑inch touch screen monitor that brings
interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast
responsiveness, and anti-friction glass, Elo's 4304L prioritizes the user experience. And
by combining the touch display with the Elo Backpack or a Brightsign player, you can
effortlessly convert this display into a versatile, life-sized 43‑inch tablet.

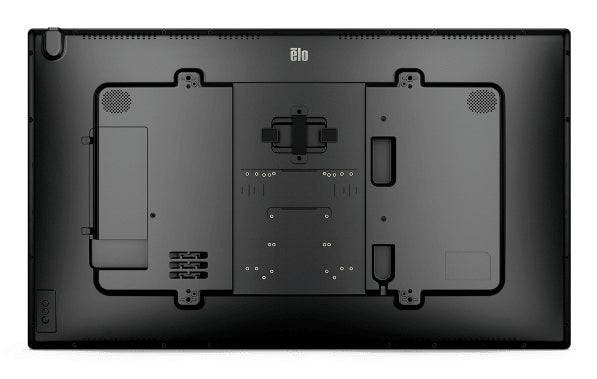

The back of your display never looked so clean.
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with
EloView, Crestron or your preferred MDM solution via provided APIs.
Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.
Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.
Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 4304L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.
Touch Thru Glass Enabled with PCAP With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 4304L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 4304L for diverse international markets.
Display
- Display diagonal: 42.5 "
- Display technology: LED
- Panel type: TFT-LCD
- Display resolution: 1920 x 1080 pixels
- Display brightness: 500 cd/m²
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 2
- Response time: 8 ms
- Contrast ratio (typical): 500
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 16.7 million colours
- Active display area (W x H): 940.9 x 529.3 mm
- Number of displays: 1
- Horizontal scan range: 30 - 70 kHz
- Vertical scan range: 24 - 64 Hz
Ports & interfaces
- HDMI ports quantity: 2
- HDMI version: 1.4
- HDMI input ports quantity: 2
- DisplayPorts quantity: 1
- DisplayPort version: 1.2
- USB port: Yes
- USB connector type: Micro-USB,USB Type-A,USB Type-C
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 2
Audio
- Built-in speaker(s): Yes
- Number of built-in speakers: 2
- RMS rated power: 16 W
Design
- Product design: Interactive flat panel
- Product colour: Black
- Screen shape: Flat
- VESA mounting: Yes
- Panel mounting interface: 100 x 100,400 x 400 mm
- Mounting type: Desk/Wall
Performance
- On Screen Display (OSD): Yes
- Ambient light sensor: Yes
- Operating hours (hours/days): 24/7
- HDCP: Yes
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 47 W
- Power consumption (sleep): 1.43 W
- Power consumption (off): 0.29 W
- Energy consumption (SDR) per 1000 hours: 41 kWh
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Energy efficiency scale: A to G
Weight & dimensions
- Display width: 1007.4 mm
- Display depth: 55.6 mm
- Display height: 595.7 mm
- Display weight: 17870 g
Packaging data
- Package width: 1150 mm
- Package depth: 187 mm
- Package height: 820 mm
- Package weight: 22960 g
Packaging content
- Cables included: Power,USB Type-C to USB Type-C
- Tilt adjustment: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Certificates
- Certification: UL 62368-1, FCC/CEC, cUL, IC, CB (International safety) (IEC/EN60950-1+IEC/EN62368-1), CE, VCCI, RCM, CCC/CEL, China RoHS, NOM Mexico, IK07, UL60950
Features
- Wall mountable: Yes
Other features
- Aspect ratio: 16
