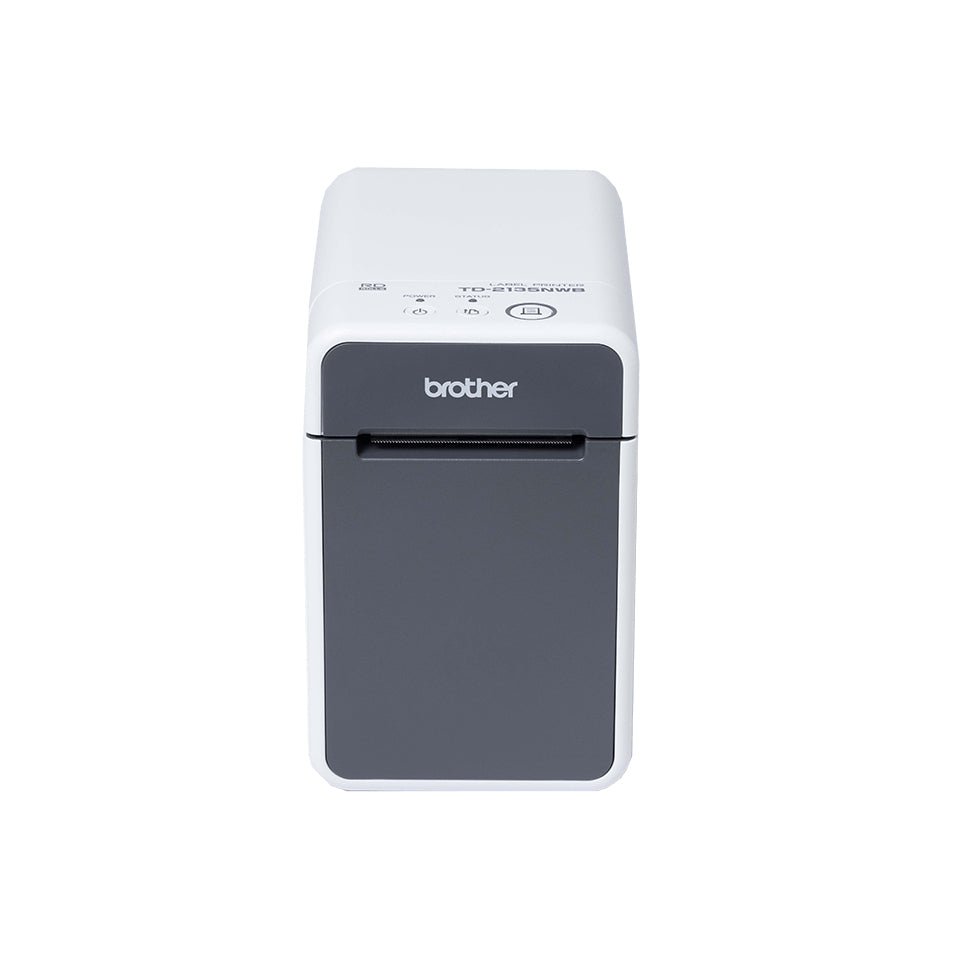

The TD-2135NWB's range of specialised features mean it is the perfect label printer for healthcare, retail warehousing, logistics and manufacturing – plus any other sector where you need to be able to print receipts, labels or wristbands. The built-in network, WiFi and bluetooth connectivity provides the flexibility to print wirelessly, or by using the available apps on your smartphone or tablet. Ideal for printing stock rotation labels, pre-packaged food ingredients labels, barcode labels, specimen, pathology and phlebotomy labels and shelf edge labels. With a higher print resolution of 300dpi, the TD-2135NWB prints professional, high-quality labels at speeds of 152mm/sec.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 300 x 300 DPI
- Print speed: 152.4 mm/sec
- Maximum printing width: 56 mm
- Maximum print length: 1 m
Paper handling
- Maximum label width: 63 mm
- Maximum roll diameter: 127 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: No
- Wi-Fi standards: 802.11b,802.11g,Wi-Fi 4 (802.11n)
- Bluetooth: Yes
- Bluetooth version: 5.2
- Bluetooth profiles: HCRP,OPP,SSP
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Performance
- Page description languages: CPCL-native,ESC P
- Internal memory: 256 MB
- Flash memory: 64 MB
- Built-in barcodes: CODABAR (NW-7),Code 39,Code-128 Codabar Library,Data Matrix,EAN13,EAN8,GS1 DataBar,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked,GS1 DataBar Limited,GS1 DataBar Omnidirectional,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Truncated,ITF,MaxiCode,PDF
- Security algorithms: 64-bit WEP,128-bit WEP,EAP-FAST,EAP-PEAP,EAP-TLS,EAP-TTLS,SNMPv3,SSL/TLS,WPA-PSK,WPA2-PSK,WPA3-EAP
Design
- Product colour: Black,White
- Built-in display: No
- Display: No
Power
- External power adapter: Yes
System requirements
- Server operating systems supported: Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019,Windows Server 2022
- Mobile operating systems supported: Android 10,Android 10.0,Android 11.0,Android 12.0,Android 5.0,Android 5.1,Android 6.0,Android 7.0,Android 7.1,Android 7.1.2,Android 8.0,Android 8.1,Android 9.0,iOS 10.0,iOS 11.0,iOS 11.4,iOS 12,iOS 13,iOS 13.4,iOS 14,iOS 14.5,iOS 15,iOS 9.0,iOS 9.1,iOS 9.
- Windows operating systems supported: Windows 10,Windows 11,Windows 8,Windows 8.1
Weight & dimensions
- Width: 180 mm
- Depth: 282 mm
- Height: 283 mm
- Weight: 1340 g
Packaging data
- Package weight: 2632 g
Packaging content
- Cables included: USB
- Manual: Yes
- Quick start guide: Yes
- AC adapter included: Yes
Logistics data
- Pallet gross height: 184.8 mm
- Pallet gross weight: 357120 g
- Master (outer) cases per pallet: 36 pc(s)
- Master (outer) cases per pallet layer: 6 pc(s)
- Layers per pallet: 6 pc(s)
- Products per pallet: 108 pc(s)
Technical details
- Pallet type: 1200 x 1000 mm
Other features
- Number of languages: 11
- Networking features: 10/100BASE-TX
- Country of origin: China
- Languages support: Multi
