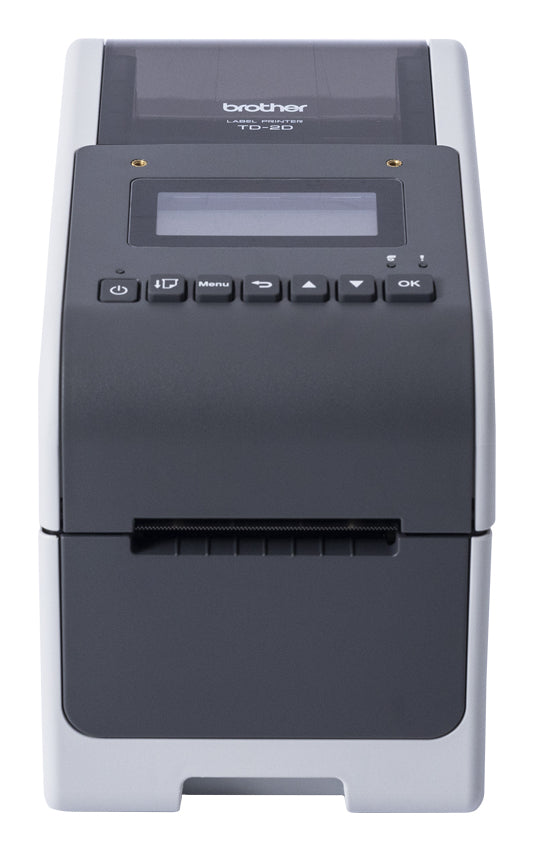

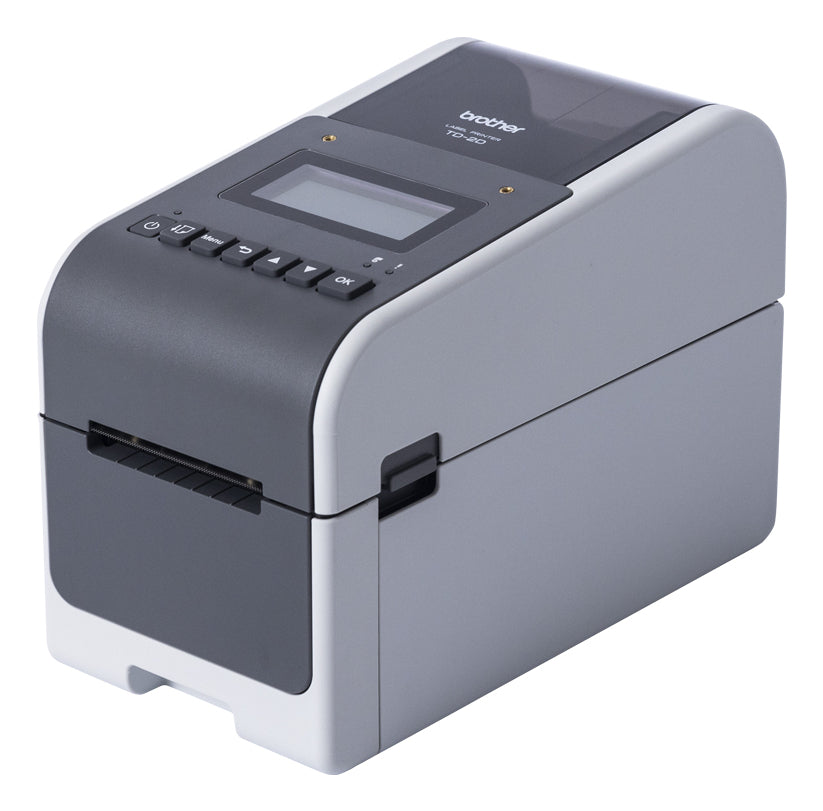

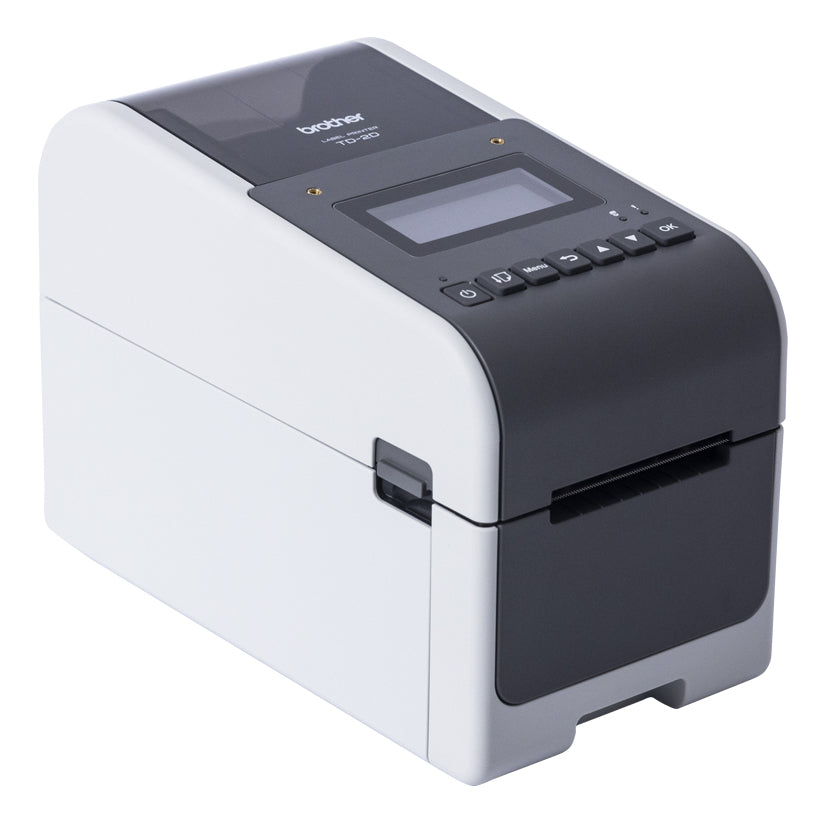

With an intuitive LCD screen, the TD-2350D300 is a user-friendly desktop label printer. The professional quality resolution, makes this label maker ideal for printing 2D barcodes. Barcodes are easily scanned and quickly processed. The Bluetooth connectivity allows for setup and configuration with a smartphone or tablet using the Mobile Deploy App. Whilst wireless connectivity removes the need of cables for the network.The printer has a range of specialised features and high-quality print resolution, the TD-2D is the perfect label printer for retail, healthcare and food traceability – where you need to be able to print high-quality receipts, labels or wristbands in any location.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 300 x 300 DPI
- Print speed: 152 mm/sec
- Maximum printing width: 59 mm
Paper handling
- Maximum roll diameter: 127 mm
- Media thickness: 0.058 - 0.279 mm
- Maximum label length: 3 m
Ports & interfaces
- Connectivity technology: Wired & Wireless
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n)
- Bluetooth: Yes
- Bluetooth version: 5.2+EDR
- USB port: Yes
- USB 2.0 ports quantity: 1
- RS-232 ports: 1
Performance
- Page description languages: ESC P,Raster_P
- Internal memory: 256 MB
- Built-in barcodes: AZTECCODE,Data Matrix,MSI,CODABAR (NW-7),UPC-A,MaxiCode,Micro QR Code,UPC-E,EAN13,Code 128 (A/B/C),EAN8,POSTNET,Code 39,GS1 DataBar,QR Code,Code 93
- Number of fonts: 10
- Security algorithms: 64-bit WEP,128-bit WEP,WPA2-PSK,PEAP,EAP-FAST,WPA3-SAE,EAP-TLS,EAP-TTLS,WPA-PSK
Design
- Product colour: Black,Grey
- Built-in display: Yes
- Display: LCD
- Control type: Buttons
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- AC adapter output voltage: 24 V
- AC adapter output current: 3.6 A
- USB port voltage: 5 V
- USB port current: 3 A
- Power source type: AC
System requirements
- Mobile operating systems supported: Android,iOS
- Linux operating systems supported: Yes
- Windows operating systems supported: Windows 10,Windows 11
Operational conditions
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 5 - 40 °C
Weight & dimensions
- Width: 181 mm
- Depth: 306 mm
- Height: 325 mm
- Weight: 1621 g
Packaging data
- Package width: 306 mm
- Package depth: 181 mm
- Package height: 325 mm
- Package weight: 2658 g
Packaging content
- Cables included: AC,USB
Logistics data
- Pallet gross height: 177.5 mm
- Pallet gross weight: 591600 g
- Master (outer) cases per pallet: 20 pc(s)
- Master (outer) cases per pallet layer: 4 pc(s)
- Layers per pallet: 5 pc(s)
- Products per pallet: 60 pc(s)
Technical details
- Warranty period: 3 year(s)
- Pallet type: 800 x 1200 mm
Other features
- Spare part retention: 5 year(s)
- Country of origin: Vietnam
