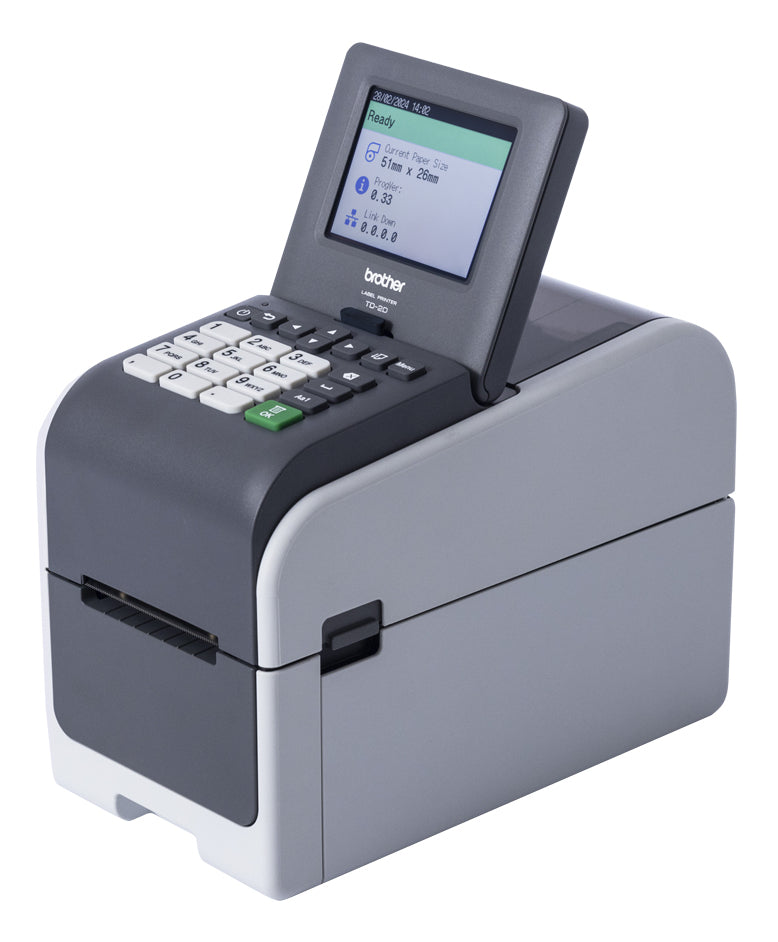

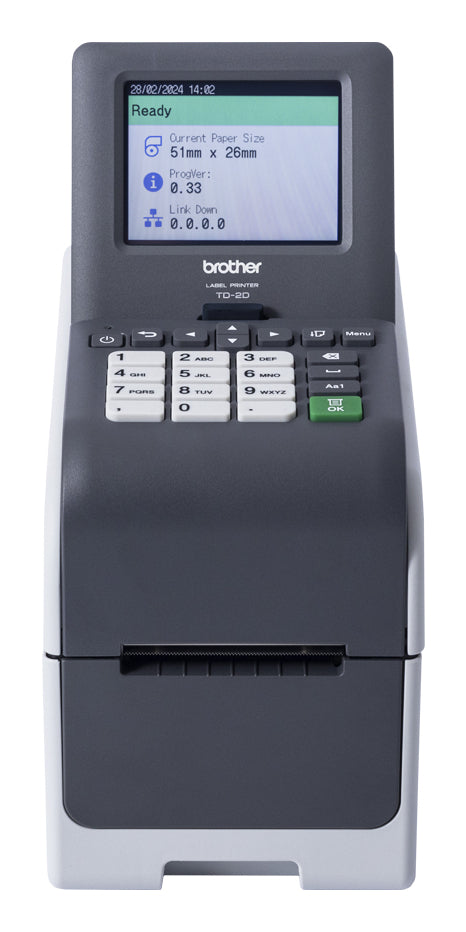

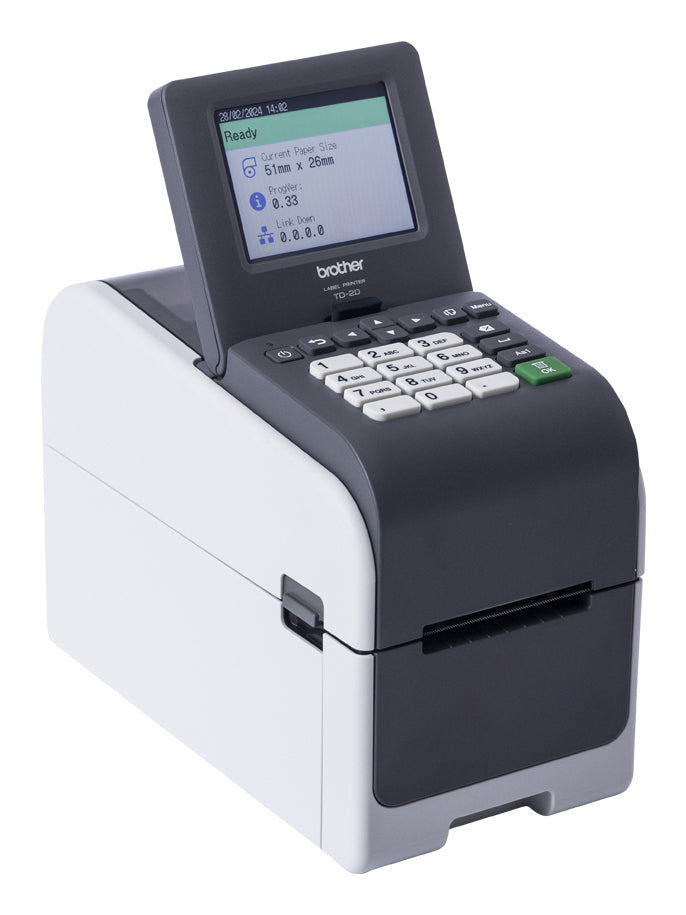

Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2320DSA203 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business. The TD-2320DSA203 works as a standalone printing solution with its 3.5" colour touch screen display and keyboard.
With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail price mark down labels and food traceability ingredient labels – where you need to print high-quality labels in any location.
Printing
- Print technology: Direct thermal
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Print speed: 152 mm/sec
- Maximum printing width: 59 mm
- Minimum print length: 6.4 mm
Paper handling
- Core diameter: 38.1 mm
- Media thickness: 0.058 - 0.279 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: No
- USB port: Yes
Performance
- Internal memory: 256 MB
- Flash memory: 64 MB
- Built-in barcodes: AZTECCODE,Data Matrix,MSI,CODABAR (NW-7),UPC-A,MaxiCode,Micro QR Code,UPC-E,EAN13,Code 128 (A/B/C),EAN8,POSTNET,Code 39,GS1 DataBar,QR Code,Code 93
Design
- Product colour: Black,Grey
- Built-in display: Yes
- Display diagonal: 3.5 "
- Colour display: Yes
- Control type: Buttons,Touch
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power source type: AC
System requirements
- Windows operating systems supported: Windows 10,Windows 11
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2016,Windows Server 2019,Windows Server 2022
Operational conditions
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 5 - 40 °C
Weight & dimensions
- Width: 119 mm
- Depth: 224 mm
- Height: 176 mm
- Weight: 1770 g
Packaging data
- Package width: 306 mm
- Package depth: 181 mm
- Package height: 325 mm
- Package weight: 2901 g
Packaging content
- Cables included: AC,USB
Logistics data
- Pallet gross height: 175 mm
- Pallet gross weight: 631200 g
- Master (outer) cases per pallet: 20 pc(s)
- Master (outer) cases per pallet layer: 4 pc(s)
- Layers per pallet: 5 pc(s)
- Products per pallet: 60 pc(s)
Technical details
- Warranty period: 3 year(s)
- Pallet type: 800 x 1200 mm
Other features
- Country of origin: Vietnam
- Spare part retention: 5 year(s)
