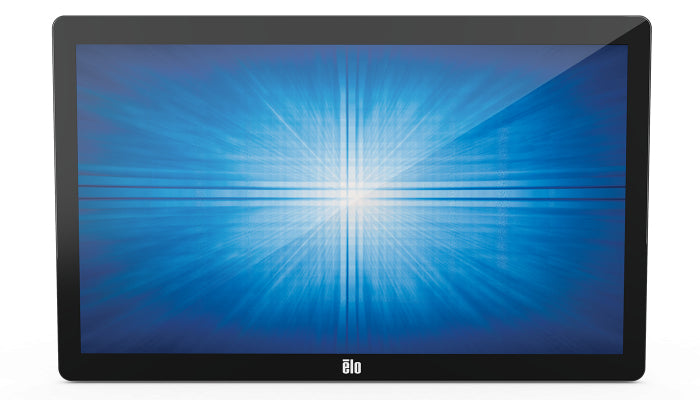

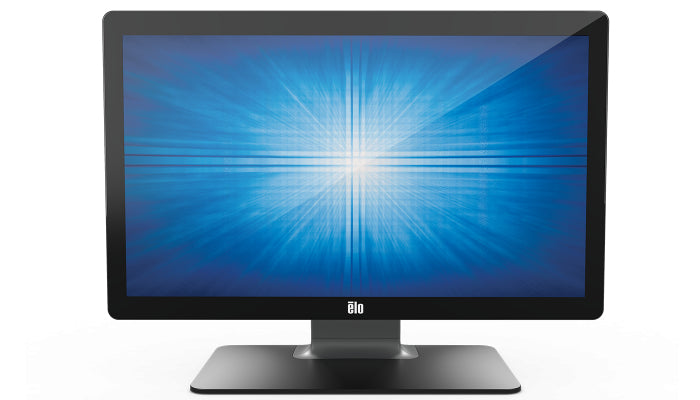

The Elo 2702L 27-inch touchscreen monitor delivers a professional-grade interactive solution with Elo’s industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches. The clear glass touchscreen provides exceptional image clarity, resolution, and light transmission for vivid images and details. Backed by a three-year warranty, the feature rich touchscreen monitor is equipped with dual built-in speakers and VGA and HDMI video connectors. With a compact form factor, clean design aesthetic and flexible mounting options, these touchscreens are well-suited for POS, interactive digital signage and self-service.
Designed for commercial use, the new Elo touchscreen monitor makes business operations easy delivering energy efficiency and versatile accessories. The 2702L accessories include MSR, barcode scanner, fingerprint reader, NFC, customer facing display, handles and privacy screens. Third party peripherals can be easily added as well with the integrated USB 2.0 hub.
Display
- Display diagonal: 27 "
- Display technology: LCD
- Panel type: TFT
- Display resolution: 1920 x 1080 pixels
- Display brightness: 300 cd/m²
- HD type: Full HD
- Touchscreen: Yes
- Touchscreen technology: Capacitive
- Number of simultaneous touchpoints: 10
- Response time: 14 ms
- Contrast ratio (typical): 1000
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 16.78 million colours
- Supported graphics resolutions: 640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+)
Ports & interfaces
- HDMI ports quantity: 1
Audio
- Built-in speaker(s): Yes
- RMS rated power: 4 W
Design
- Product colour: Black,Silver
- Screen shape: Flat

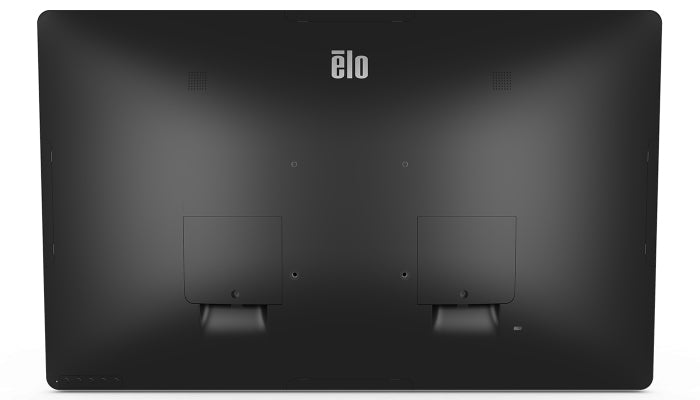

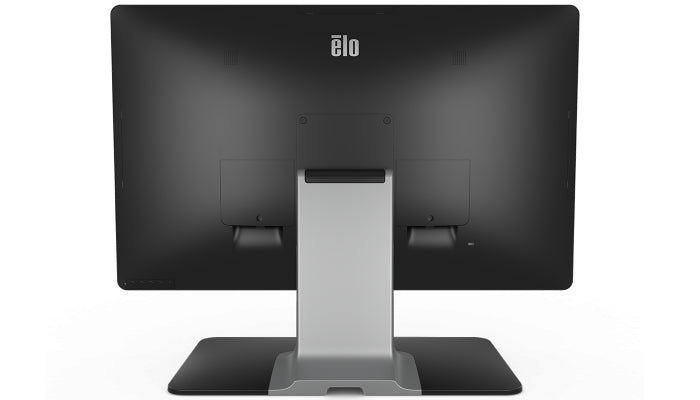

- VESA mounting: Yes
- Panel mounting interface: 100 x 100 mm
Performance
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,RUS
- Number of OSD languages: 10
- International Protection (IP) code: IPX1
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 28 W
- Power consumption (standby): 0.45 W
- Power consumption (off): 0.38 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width (with stand): 647.6 mm
- Depth (with stand): 233 mm
- Height (with stand): 450.9 mm
- Weight (with stand): 10500 g
Packaging data
- Package width: 764 mm
- Package depth: 322 mm
- Package height: 560 mm
- Package weight: 14300 g
Packaging content
- Cables included: AC,Audio (3.5mm),HDMI,USB,VGA
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Logistics data
- Harmonized System (HS) code: 85285210
Features
- Wall mountable: Yes
Technical details
- Full HD: Yes
Other features
- Micro-USB ports quantity: 4
- Maximum refresh rate: 60 Hz
- Digital vertical frequency: 50 - 75 Hz
- Built-in microphone: No
- Headphone outputs: 1
- Aspect ratio: 16
- Dimensions (W x D x H) with stand: 647.6 x 233 x 450.9 mm
- Weight (without stand): 7240 g
- Quick start guide: Yes
- AC adapter included: Yes
- Digital horizontal frequency: 30 - 82 kHz
- Display viewable area (HxV): 597.88 x 336.31 mm
- Built-in camera: No
