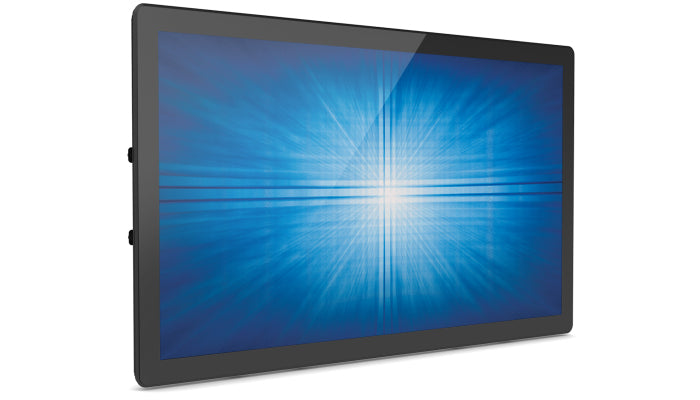

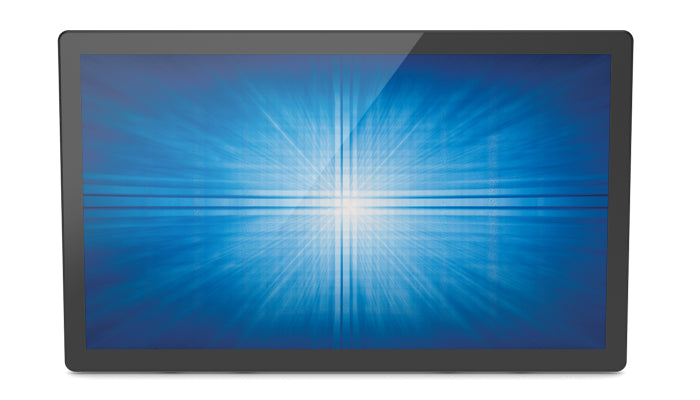

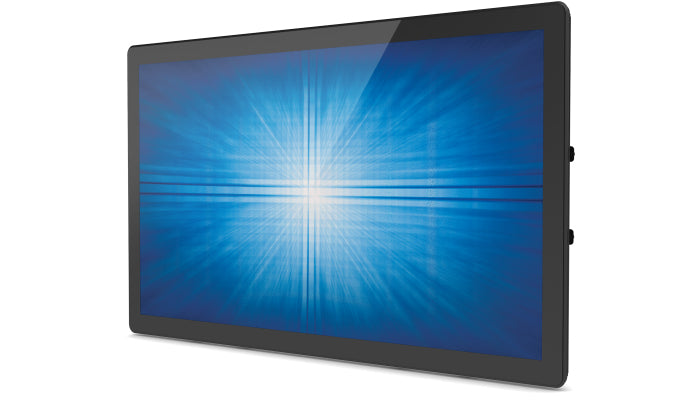

Go Brighter with Elo Open Frames
Elo's new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.
Display
- Display diagonal: 23.8 "
- Display technology: LCD
- Panel type: TFT
- LED backlight: Yes
- Display resolution: 1920 x 1080 pixels
- Display brightness: 540 cd/m²
- HD type: Full HD
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 10
- Native aspect ratio: 16
- Response time: 14 ms
- Contrast ratio (typical): 1000
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 16.78 million colours
- Supported graphics resolutions: 640 x 480 (VGA),720 x 400,800 x 500,800 x 600 (SVGA),1024 x 768 (XGA),1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Ports & interfaces
- HDMI ports quantity: 1
- HDMI version: 1.3a
- DisplayPorts quantity: 1
- DisplayPort version: 1.1a
- Ethernet LAN (RJ-45) ports: 1
Design
- Product colour: Black
- Screen shape: Flat

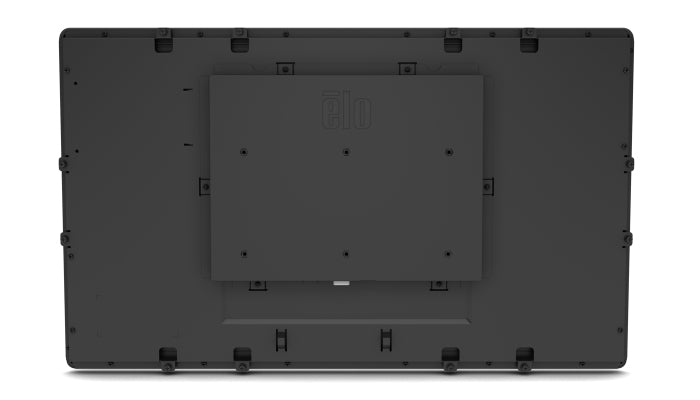

- VESA mounting: Yes
Performance
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE
- On Screen Display (OSD): Yes
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (standby): 0.71 W
- Power consumption (off): 0.2 W
- Power consumption (max): 32.95 W
- Energy efficiency class (SDR): G
- Energy consumption (SDR) per 1000 hours: 39 kWh
- Energy efficiency scale: A to G
Packaging data
- Package width: 692 mm
- Package depth: 190 mm
- Package height: 452 mm
- Package weight: 7570 g
Packaging content
- Cables included: HDMI,USB,VGA
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Features
- Wall mountable: Yes
Technical details
- Compliance certificates: RoHS
Other features
- Maximum refresh rate: 60 Hz
- Backlight type: LED
- Digital vertical frequency: 50 - 75 Hz
- Viewable size, vertical: 296.46 mm
- Digital horizontal frequency: 30 - 82 kHz
- Viewable size, horizontal: 527.04 mm
- Depth (without stand): 37 mm
- Display viewable area (HxV): 527.04 x 296.46 mm
- Weight (without stand): 5650 g
- Power supply type: DC
- Height (without stand): 341.1 mm
- Built-in camera: No
