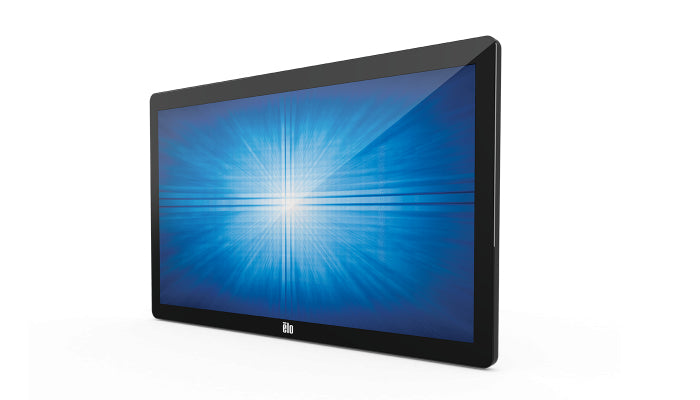

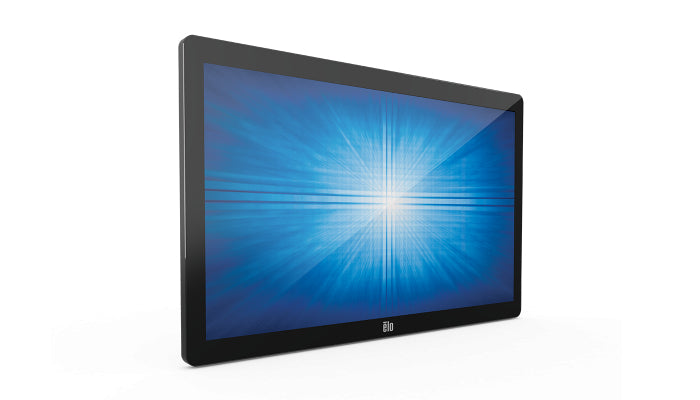

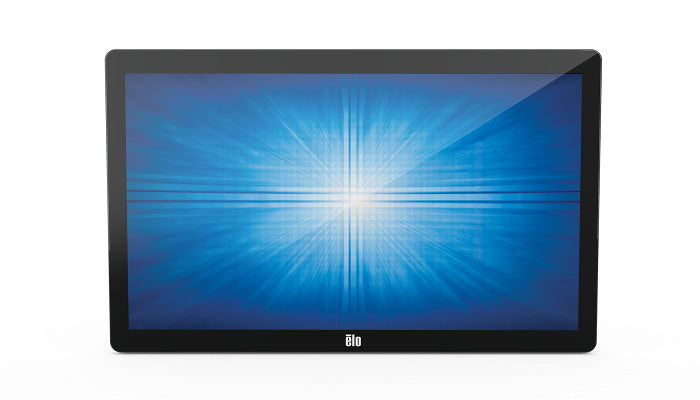

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
One for You
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.
Display
- Display diagonal: 23.8 "
- Display technology: LCD
- Panel type: TFT
- LED backlight: Yes
- Display resolution: 1920 x 1080 pixels
- Display brightness: 250 cd/m²
- HD type: Full HD
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 10
- Native aspect ratio: 16
- Response time: 15 ms
- Contrast ratio (typical): 1000
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 16.78 million colours
- Supported graphics resolutions: 640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
Ports & interfaces
- HDMI ports quantity: 1
Audio
- Built-in speaker(s): Yes
- RMS rated power: 4 W
Design
- Product colour: Black
- Screen shape: Flat

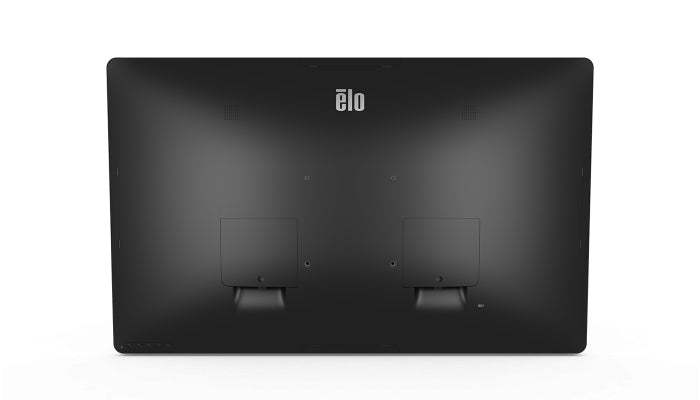

- VESA mounting: Yes
- Panel mounting interface: 75 x 75,100 x 100 mm
Performance
- Number of OSD languages: 10
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,RUS
- International Protection (IP) code: IPX1
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 25.5 W
- Power consumption (standby): 0.33 W
- Power consumption (off): 0.27 W
- Energy efficiency class (SDR): E
- Energy consumption (SDR) per 1000 hours: 17 kWh
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Energy efficiency scale: A to G
Packaging data
- Package width: 680 mm
- Package depth: 169 mm
- Package height: 460 mm
- Package weight: 7540 g
Packaging content
- Stand included: No
- Cables included: AC,Audio (3.5mm),HDMI,USB,VGA
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
- Operating altitude: 0 - 3.048 m
- Non-operating altitude: 0 - 12.192 m
Certificates
- Certification: Canada (CUL,IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC,UL), Japan VCC, Internationa lCB, Australia RCM, Russia EAC, Mexico CoC
Logistics data
- Harmonized System (HS) code: 85285210
Other features
- Micro-USB ports quantity: 4
- Maximum refresh rate: 60 Hz
- Weight (without stand): 5420 g
- Digital horizontal frequency: 30 - 82 kHz
- Height (without stand): 337.2 mm
- Power supply type: AC/DC
- Headphone outputs: 1
- Digital vertical frequency: 50 - 75 Hz

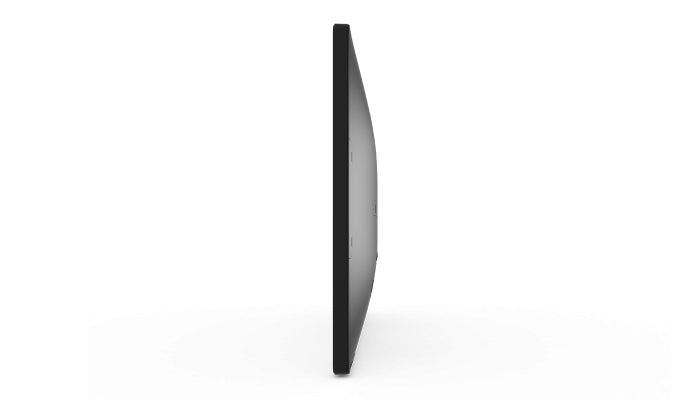

- Depth (without stand): 42.8 mm
- Quick start guide: Yes
- AC adapter included: Yes
- Display viewable area (HxV): 527.04 x 296.46 mm
- Built-in camera: No
