Built for high-volume applications and harsh environments, Zebra's Xi Series label printers deliver superior print quality and reliability. Boost productivity with faster print and connection speeds, and reduce downtime with early warning.
Used For:
- Asset Management
- Cross Docking
- Inventory Management
- Receiving/Shipping
- Work-in-Process Tracking
- Compliance Labeling
- Order Labeling
- Quality Control

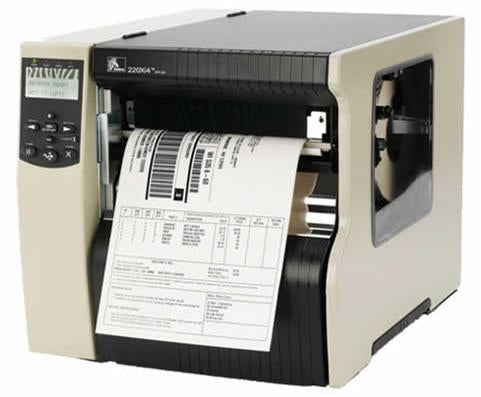

220Xi4 Industrial Printer
Designed for fast printing of chemical drum and other wide-label applications, count on high-performance when you trust the rugged reliability of this thermal label printer.
Printing
- Print technology: Thermal transfer
- Colour: No
- Maximum resolution: 203 x 203 DPI
- Maximum printing width: 216 mm
Paper handling
- Ribbon width: 170 mm
- Ribbon length: 450 m
- Core diameter: 76.2 mm
- Media thickness: 0.076 - 0.305 mm
- Maximum label width: 224 mm
- Maximum roll diameter: 203 mm
- Media thickness (imperial): 0.003 - 0.12 "
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- Wi-Fi: No
- USB port: Yes
- USB 2.0 ports quantity: 1
- Parallel ports quantity: 1
- RS-232 ports: 1
- Standard interfaces: Ethernet
- RS-232 interface: Yes
- Optional connectivity: Twinax,Wireless LAN
Performance
- Page description languages: XML,ZPL,ZPL II
- Internal memory: 16 MB
- Flash memory: 8 MB
- Built-in barcodes: 1D,2D,CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 49,Code 93,EAN13,EAN8,Industrial 2/5,Interleaved 2/5,MaxiCode,PDF417,POSTNET,QR Code,UPC-A,UPC-E
- Built-in processor: 32-bit RISC
- Processor frequency: 133 MHz
- Certification: BSMI, cTUVus, CCC, CE, C-Tick, EN55022 B, EN55024, EN61000-3-2,3, FCC B, GOST-R, ICES-003 B, IEC 60950-1 / EN60950, KCC, NOM, S Mark, STB, UkrSEPRO, VCCI, ZIK
Design
- Product colour: Black,Grey
- Built-in display: Yes
- Display: LCD
- Display resolution: 240 x 128 pixels
Power
- Power requirements: 90 - 264 VAC, 48 - 62 Hz
Operational conditions
- Operating relative humidity (H-H): 20 - 85 %
- Storage relative humidity (H-H): 5 - 85 %
- Storage temperature (T-T): -40 - 60 °C
- Operating temperature (T-T): 40 - 105 °F
- Operating temperature (T-T): 5 - 40 °C
- Storage temperature (T-T): -40 - 140 °F
Weight & dimensions
- Width: 401.6 mm
- Depth: 517.5 mm
- Height: 393.7 mm
- Weight: 32700 g
Packaging data
- Package type: Box
Packaging content
- Cables included: AC
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- Network ready: Yes
