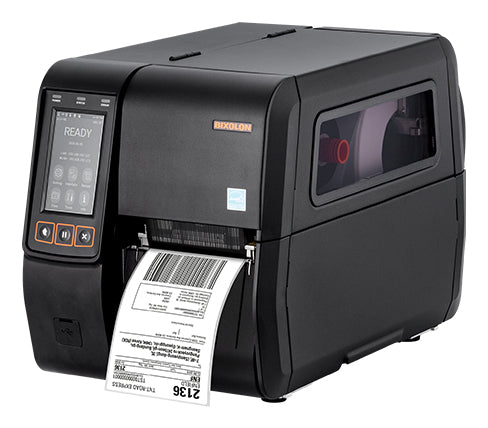

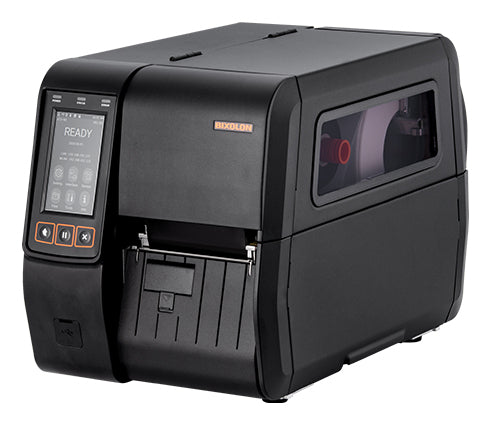

Providing a consistent look and feel to BIXOLON's newer label printer lineups, the mid-tier Industrial class 4-inch (114mm) label printer supports UHF RFID print and encode capability. The XT5-40 series offers such key features as a USB Host, wireless; WLAN or MFi certified Bluetooth, 1Gigabit Ethernet, and print speeds up to 14 ips (356mm/sec). Choices of up to 600 dpi resolution for high definition output and 3.5 inch colour or 4.3 inch full-colour touch LCD display, plus easy in-field upgrades of media handling options – peel dispense and cutter, and factory-installed rewind configurations means that there is a choice for all your printing needs. Offering
The XT5-40 series is an industrial workhorse that ensures downtime is kept to a minimum thanks to its intuitive media and ribbon loading; The printer can be easily controlled thanks to the simple menu layout but can be also be viewed and controlled remotely thanks to the XPM device management software.
Printing
- Print technology: Direct thermal / Thermal transfer
- Maximum resolution: 203 x 203 DPI
- Print speed: 356 mm/sec
- Maximum printing width: 104 mm
Paper handling
- Ribbon width: 110 mm
- Ribbon length: 450 m
- Media thickness: 0.06 - 0.30 mm
- Core diameter: 25.4 mm
- Maximum roll diameter: 203 mm
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- USB port: Yes
- USB 2.0 ports quantity: 2
- Optional connectivity: Serial (RS-232)
Performance
- Page description languages: DPL,EPL,SLCS,ZPL II
- Internal memory: 512 MB
- Flash memory: 512 MB
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Display diagonal: 4 "
- Colour display: Yes
- Backlight display: Yes
- Control type: Buttons,Touch
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
System requirements
- Mac operating systems supported: Yes
- Mobile operating systems supported: Android
- Linux operating systems supported: Yes
- Windows operating systems supported: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 80 %
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 5 - 40 °C
Weight & dimensions
- Width: 269 mm
- Depth: 490 mm
- Height: 324 mm
- Weight: 13980 g
Logistics data
- Harmonized System (HS) code: 84433210
Technical details
- Sustainability certificates: ENERGY STAR
Other features
- Emulations: SLCS™, BPL-Z™ (ZPLII), BPL-E™ (EPL), BPL-D™ (DPL)
