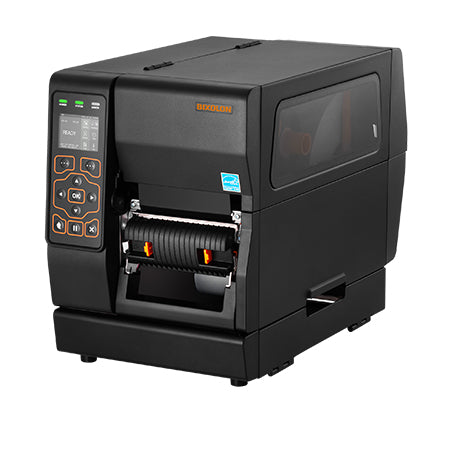

Adding a new entry-level 4-inch (114 mm) printing solution to BIXOLON's industrial label printer lineup, XT3-40 is designed with a familiar feel to the XT5-40 Series. The XT3-40 supports fast data processing and print speeds of up to 8 ips (203 mm/sec) at 203 dpi. Featuring a compact and robust design, double-holding door, and side-loading supplier path, the XT3-40 allows easy printer installation within narrow environments.
User-Friendly Design
- Compact and robust design
- Rugged all-metal case and double folding door
- Side-loading supplies path for simplified media and ribbon installation
- 2.4 inch full colour LCD display
- Peeler and Auto Cutter, and factory-installed Rewinder with Peeler options
- Toolless maintenance of roller and print head
- Supporting up to 450 m ribbon length
Industrial-Standard Performance
- Fast data processing and print speeds of up to 8 ips (203 mm/sec)
- Optional 203 or 300 dpi high resolutions
- Fully compatible with market-leading programming languages
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.2 (MFi certified)
Secure and Efficient Management
- Twin funtion™ supported: Copy printer settings and data via USB
- Compatible with label design software;
- BIXOLON’s Label Artist and Seagull's BarTender
- XPM™ & XCM™ - Web-based printer management software and connection app.
Printing
- Print technology: Thermal transfer
- Maximum resolution: 203 x 203 DPI
- Print speed: 203 mm/sec
- Maximum printing width: 108 mm
- Minimum print length: 4000 mm
Paper handling
- Ribbon width: 110 mm
- Ribbon length: 450 m
- Media thickness: 0.06 - 0.25 mm
- Maximum roll diameter: 203 mm
Ports & interfaces
- Connectivity technology: Wired
- Wi-Fi: Yes
- Bluetooth: No
- USB port: Yes
- RS-232 ports: 1
Performance
- Page description languages: BPL,SLCS
- Internal memory: 128 MB
- Flash memory: 128 MB
- Built-in barcodes: 1D,2D
Design
- Product colour: Black
- Built-in display: Yes
- Display: LCD
- Display diagonal: 2.4 "
- Colour display: Yes
- Control type: Buttons
Power
- AC input voltage: 100-240 V
- AC input frequency: 50-60 Hz
System requirements
- Mac operating systems supported: Yes
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Mobile operating systems supported: Android,iOS
Operational conditions
- Operating relative humidity (H-H): 10 - 80 %
- Storage relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -20 - 60 °C
- Operating temperature (T-T): 5 - 40 °C
Weight & dimensions
- Width: 240 mm
- Depth: 430.5 mm
- Height: 326.7 mm
- Weight: 11800 g
Packaging content
- Cables included: USB
