The Xenon Ultra family of handheld scanners is a premium evolution of the widely known legacy Xenon and Xenon XP general purpose scanners, taking our industry-leading scan performance and reliability one step further.

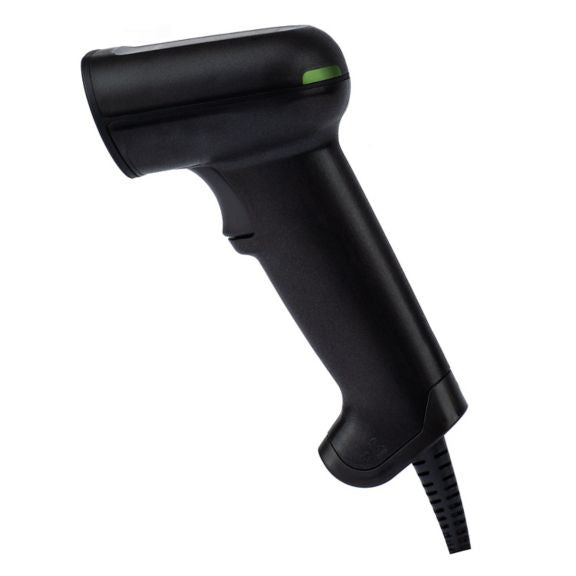

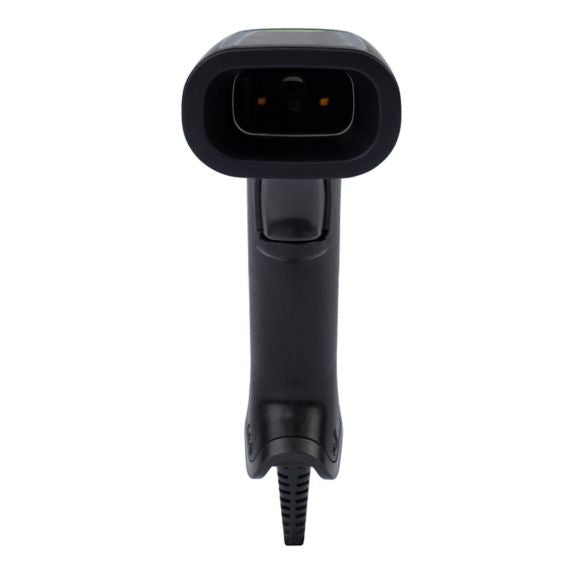

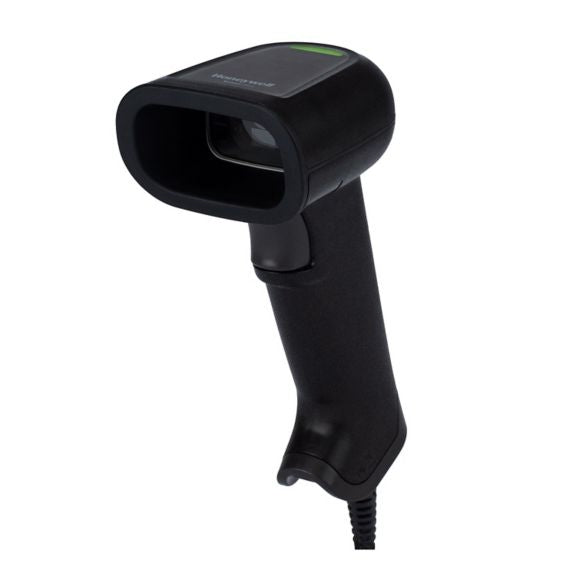

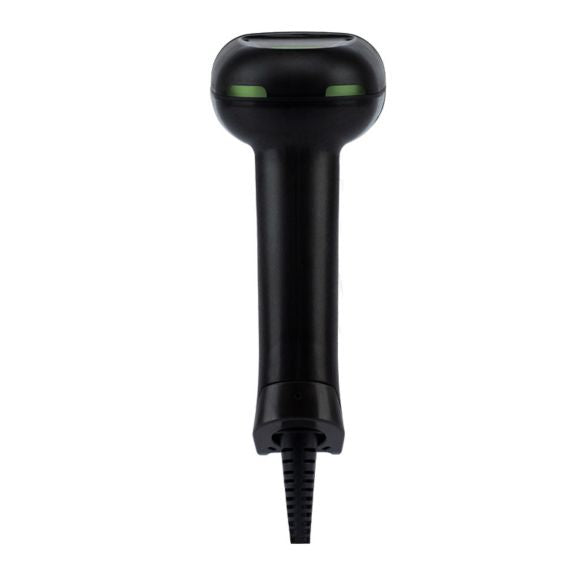

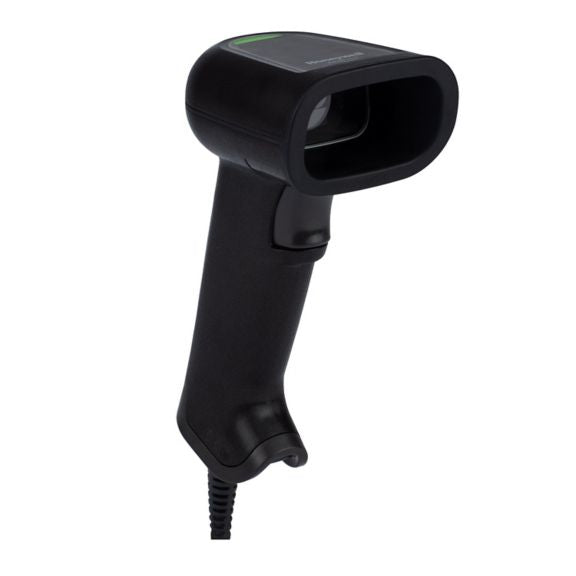

- The Xenon Ultra 1960 corded scanner is designed with green-dot LED aimers, helping users ensure accurate scans with each use.
- Warm-white illumination and print contrast down to 15% enables users to capture ultra high-density barcodes, even down to 2 mils.
- The green-dot LED aimer and white illumination aids in easier targeting and enhances scan accuracy on high-density and low-quality codes in high-throughput environments.
- With added IR capabilities, reduce annoying false activations, enabling illumination only when needed. IR even helps to reduce the gap between point-and-shoot and hands-free modes of operations.
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D/2D
- 2D (matrix & stacked) barcodes supported: Code 39,Data Matrix,PDF417,QR Code
- Linear (1D) barcodes supported: Code 128,Code 39,PDF417,U.P.C.
- Sensor type: LED
- Optical sensor resolution (W x H): 1280 x 800 pixels
- Light levels (direct sunlight): 0 - 100000 lx
- Wavelength: 525 nm
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: Keyboard wedge,RS-232,USB
Performance
- Product colour: Black
- International Protection (IP) code: IP52
- Protection features: Drop proof
Power
- Power source type: RS-232,USB
- Power consumption (typical): 2.5 W
- Input voltage: 4.4 - 5.5 V
Weight & dimensions
- Width: 108.2 mm
- Depth: 70.4 mm
- Height: 160.2 mm
- Weight: 147.2 g
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 0 - 95 %
