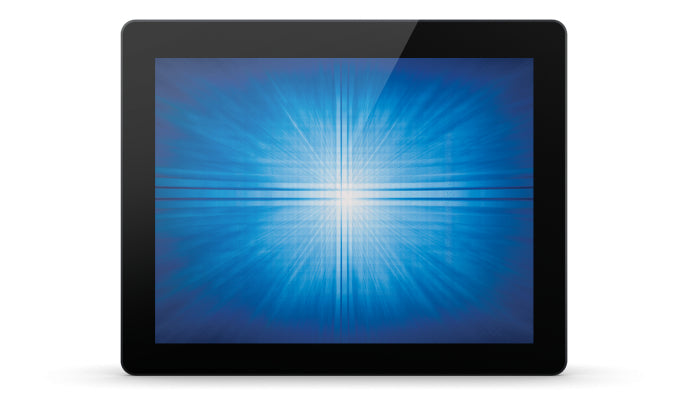

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Display
- Display diagonal: 15 "
- Display technology: LCD
- LED backlight: Yes
- Display resolution: 1024 x 768 pixels
- Display brightness: 270 cd/m²
- Touchscreen: Yes
- Touchscreen technology: Surface acoustic wave
- Response time: 16 ms
- Contrast ratio (typical): 800
- Viewing angle, horizontal: 160 °
- Viewing angle, vertical: 150 °
- Display number of colours: 16.2 million colours
- Native refresh rate: 60 Hz
- Horizontal scan range: 30 - 60 kHz
- Vertical scan range: 50 - 75 Hz
Ports & interfaces
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
Design
- Product colour: Black
- Screen shape: Flat
- VESA mounting: Yes
- Panel mounting interface: 75 x 75,100 x 100 mm
Performance
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 12.5 W
- Power consumption (off): 0.5 W
Packaging data
- Package width: 434 mm
- Package depth: 175 mm
- Package height: 375 mm
- Package weight: 4700 g
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Logistics data
- Harmonized System (HS) code: 85285210
Features
- Wall mountable: Yes
Technical details
- Compliance certificates: RoHS
- Full HD: No
Other features
- Digital vertical frequency: 50 - 75 Hz
- Height (without stand): 284.9 mm
- Backlight type: LED
- Display viewable area (HxV): 304.1 x 228.1 mm
- Power supply type: DC
- Weight (without stand): 2900 g
- Aspect ratio: 4
- Digital horizontal frequency: 30 - 60 kHz
- Depth (without stand): 35.6 mm
- Built-in camera: No
