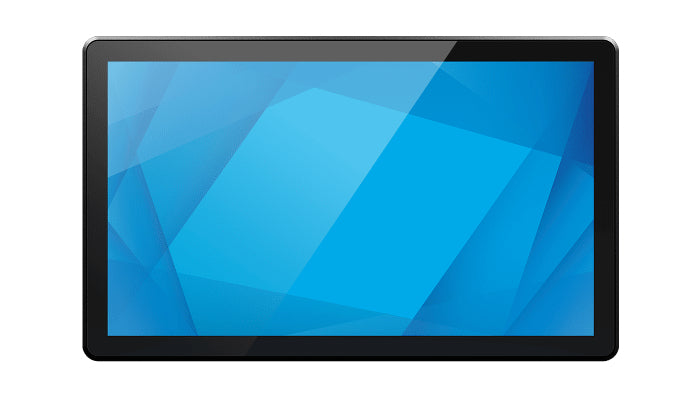

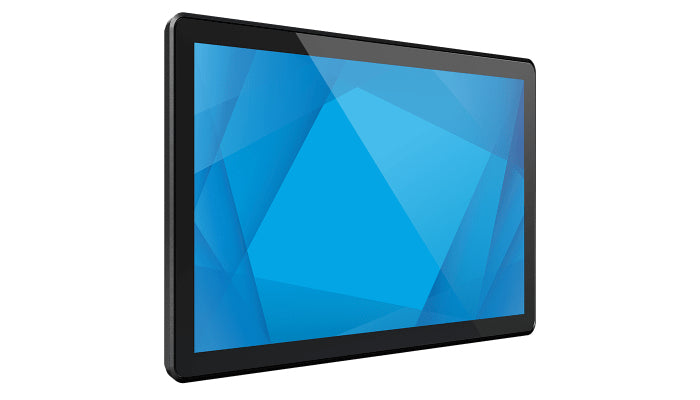

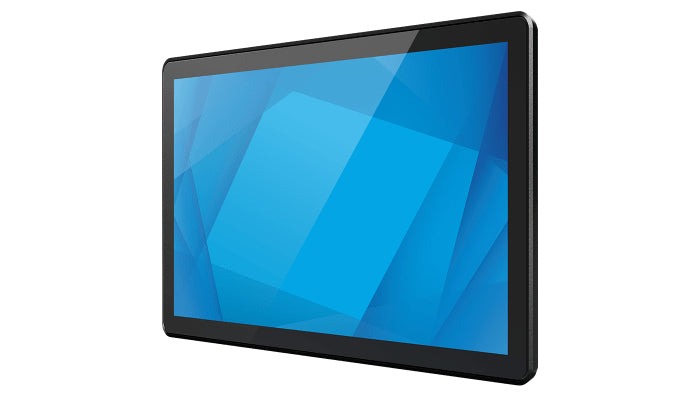

Elo's 1564L 15-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1564L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Brilliant, optically-bonded
TouchPro® PCAP display.
The 15-inch 1564L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.
Navigate the OSD directly
on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Designed for easy integration.
Elo’s 15-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.
Computing power that
scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
Display
- Display diagonal: 15.6 "
- Display technology: LCD
- LED backlight: Yes
- Panel type: LCD
- LED backlighting type: Edge-LED
- Display resolution: 1920 x 1080 pixels
- Display brightness: 450 cd/m²
- HD type: Full HD
- Touchscreen: Yes
- Number of simultaneous touchpoints: 10
- Native aspect ratio: 16
- Response time: 25 ms
- Contrast ratio (typical): 1000
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Display number of colours: 16.7 million colours
- Active display area (W x H): 344.16 x 193.59 mm
- Vertical scan range: 50 - 75 Hz
- Horizontal scan range: 30 - 80 kHz
Ports & interfaces
- HDMI ports quantity: 1
- HDMI version: 1.4
- DVI port: No
- DisplayPorts quantity: 1
- DisplayPort version: 1.2
- USB port: Yes
- USB ports quantity: 1
- USB version: 2.0
- USB connector type: USB Type-C
- DC-in jack: Yes
Design
- Product design: Interactive flat panel
- Product colour: Black
- Placement supported: Indoor

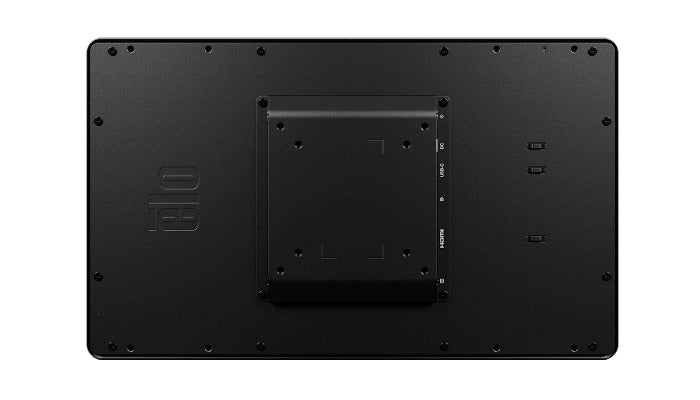

- VESA mounting: Yes
- Panel mounting interface: 75 x 75,100 x 100 mm
Performance
- Purpose: Commercial
- Operating hours (hours/days): 24/7
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 12.95 W
- Power consumption (standby): 9.36 W
- Power consumption (sleep): 0.45 W
- Power consumption (off): 0.25 W
Computer system
- Computer system: No
- Built-in processor: No
Weight & dimensions
- Width: 375 mm
- Depth: 224.4 mm
- Height: 31.6 mm
- Weight: 2230 g
Packaging data
- Package width: 450 mm
- Package depth: 302 mm
- Package height: 141 mm
- Package weight: 4120 g
Packaging content
- Cables included: HDMI,USB Type-A to USB Type-C
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Certificates
- Certification: CE, TUV, UKCA, VCCI, KCC, NoM, BSMI, UL, FCC, CB, RoHS, China RoHS, WEEE
Technical details
- Sustainability certificates: ENERGY STAR
