Designed intentionally for demanding environments.
Elo has designed and engineered the I-Series Steel to help ensure optimal versatility for seamless integration into almost any environment.
Fully integrated power-over-ethernet (POE).
With POE, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and an ethernet cable and you are ready to power on.

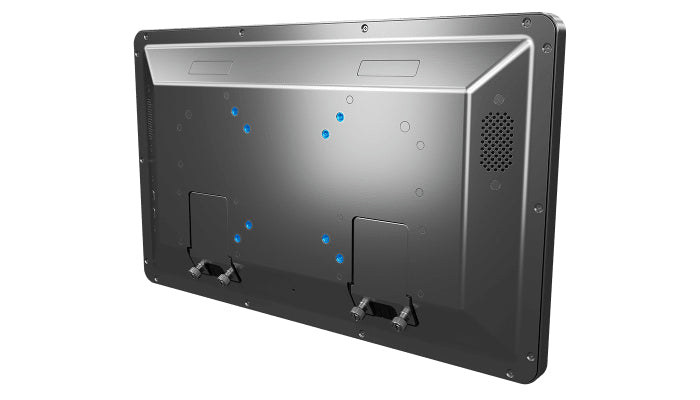

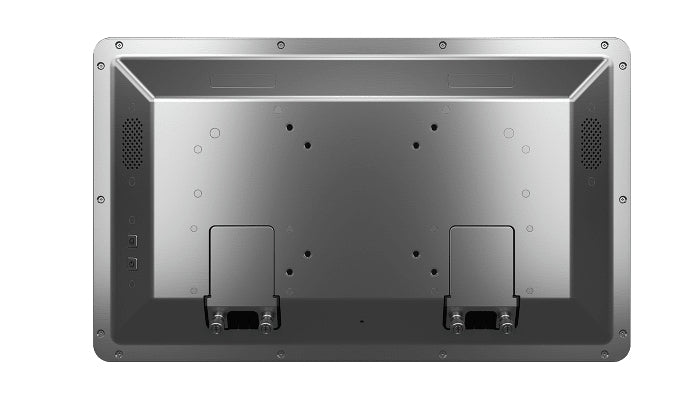

Integrated VESA for ease of mounting.
The industrial-grade I-Series Steel can be mounted in landscape and portrait, providing optimal flexibility for mounting to a wall, pole, arm or any third party compatible VESA mount.
Display
- Display diagonal: 15.6 "
- Display technology: LED
- Panel type: TFT-LCD
- Display resolution: 1920 x 1080 pixels
- Display brightness: 250 cd/m²
- HD type: Full HD
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 10
- Multi-touch: Yes
- Response time: 25 ms
- Contrast ratio (typical): 700
- Viewing angle, horizontal: 170 °
- Viewing angle, vertical: 170 °
- Display number of colours: 16.7 million colours
- Active display area (W x H): 344 x 194 mm
- Number of displays: 1
- Native refresh rate: 60 Hz
Ports & interfaces
- USB port: Yes
- USB ports quantity: 2
- USB connector type: USB Type-A,USB Type-C
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 1000 Mbit/s
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- DC-in jack: Yes
Audio
- Built-in speaker(s): Yes
- Number of built-in speakers: 2
- RMS rated power: 1.5 W
Design
- Product design: Digital signage flat panel
- Product colour: Stainless steel
- Placement supported: Indoor
- Orientation: Horizontal/Vertical
- Screen shape: Flat
- VESA mounting: Yes
- Panel mounting interface: 75 x 100 mm
Performance
- Purpose: Commercial
- Number of microphones: 2
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 9.2 W
- Power consumption (sleep): 2 W
- Power consumption (off): 0.2 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Computer system
- Built-in processor: Yes
- Processor manufacturer: Qualcomm
- Processor cores: 8
- Internal memory: 8 GB
- Internal storage capacity: 64 GB
- Operating system installed: Android
- Operating system version: Android 14
Weight & dimensions
- Display width: 383 mm
- Display depth: 30.9 mm
- Display height: 231.5 mm
- Display weight: 2400 g
Packaging data
- Package width: 453 mm
- Package depth: 168 mm
- Package height: 320 mm
Packaging content
- Cables included: Power
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 50 °C
- Storage relative humidity (H-H): 5 - 95 %
Certificates
- Certification: UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia)
Other features
- Bluetooth version: 5.2
- Aspect ratio: 16
- Bluetooth: Yes
- Megapixel (approx.): 8 MP
- Built-in camera: Yes
