Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

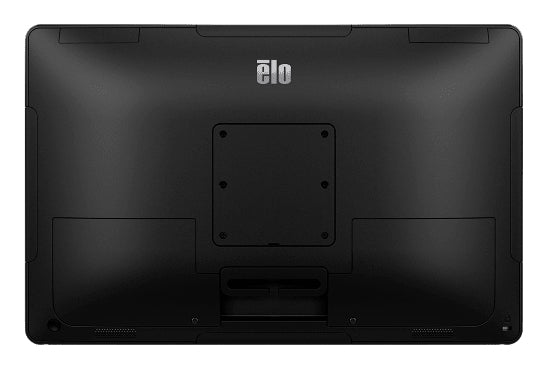

Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security
and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.
Expand possibilities with AI processing.
Experience unparalleled AI processing power with the I-Series 3, featuring optional Hailo Neural Processing Engine capable of executing 50 TOPS (trillion operations per second). Available with i7 processor models.
Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
Display
- Display diagonal: 15.6 "
- Display resolution: 1920 x 1080 pixels
- HD type: Full HD
- Display type: LCD
- Display brightness: 350 cd/m²
- Touchscreen: Yes
- Effective viewing area: 344.2 x 193.5 mm
- LED backlight: Yes
- Response time: 25 ms
- Viewing angle, vertical: 170 °
- Number of colours: 16.2 million colours
- Native refresh rate: 60 Hz
- Viewing angle, horizontal: 170 °
- Native aspect ratio: 16
- Contrast ratio (typical): 1000
Features
- Product colour: Black
- Tilt adjustment: Yes
- VESA mounting: Yes
- Windows operating systems supported: Windows 10 IoT Enterprise,Windows 10 Pro,Windows 11 Enterprise,Windows 11 Pro
- Mean time between failures (MTBF): 50000 h
Processor
- Processor manufacturer: Intel
- Processor cache: 10 MB
Ports & interfaces
- USB 2.0 ports quantity: 2
- Optional connectivity: Bluetooth,Near Field Communication (NFC),Serial (RS-232)
Memory
- Internal memory: 8 GB
- Internal memory type: DDR5-SDRAM
- Maximum internal memory: 32 GB
- Memory clock speed: 4800 MHz
Power
- Power source type: AC,DC
- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50 - 60 Hz
- Power: 180 W
- USB port voltage: 5 V
Weight & dimensions
- Width: 384 mm
- Depth: 44 mm
- Height: 237 mm
- Weight: 3600 g
Operational conditions
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage relative humidity (H-H): 5 - 95 %
- Operating temperature (T-T): 0 - 35 °C
Audio
- Built-in speaker(s): Yes
- Number of speakers: 2
