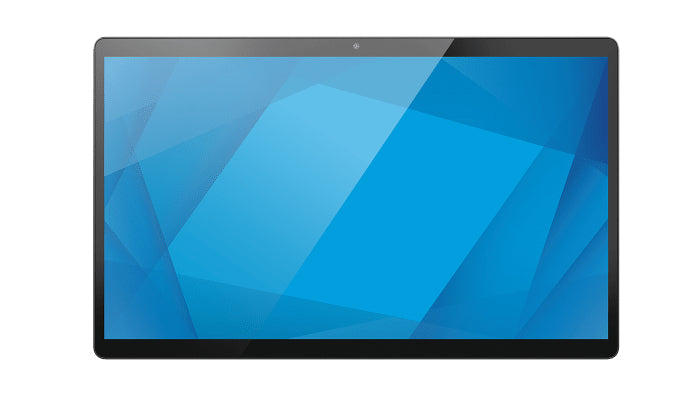

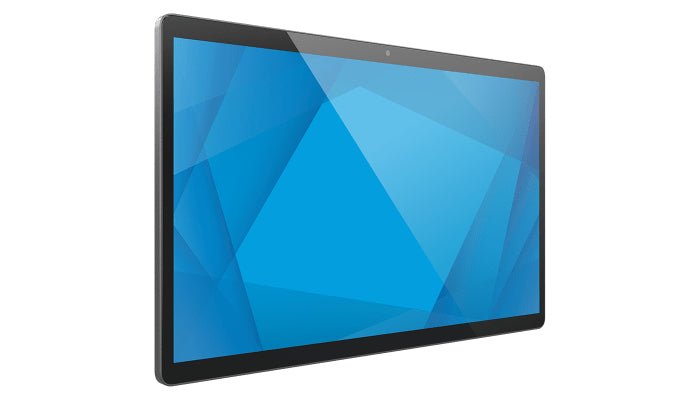

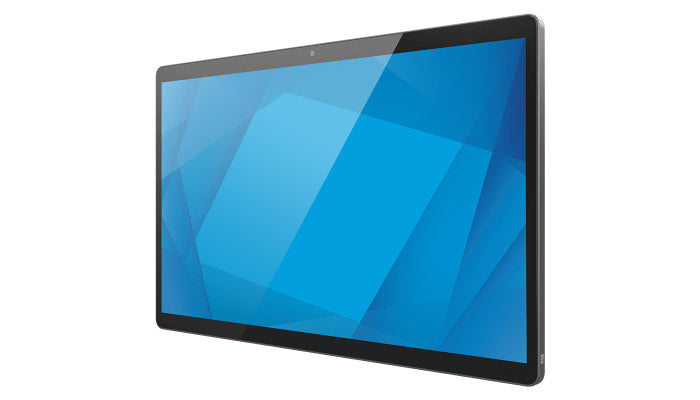

I-Series 3 Slate with Intel®
Brilliant, beautiful and razor thin.
Interactive signage has never looked so good.
Create your POS system.
Transform the I-Series 3 Slate it into a powerful, industrial-design POS system that scales with your business.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 11th Generation processors, integrated Trusted Platform Modules and the Windows 10 operating system, the I-Series 3 Slate delivers the dependability businesses need.
Support for Linux.
For added flexibility, the I-Series 3 Slate offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
Get peace of mind with EloCare.
- Advance Unit Replacement
- Extended Warranty
- Professional Services
Display
- Display diagonal: 15.6 "
- Display resolution: 1920 x 1080 pixels
- Touchscreen: Yes
- Display type: TFT
- Aspect ratio: 16
- Display number of colours: 16.2 million colours
- Contrast ratio (typical): 1000
- Response time: 25 ms
- Effective viewing area: 344.2 x 193.5 mm
- Viewing angle, horizontal: 170 °
- Display brightness: 255 cd/m²
- Viewing angle, vertical: 170 °
- Touchscreen technology: Projected capacitive system
Processor
- Processor manufacturer: Intel
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4-SDRAM
- Maximum internal memory: 32 GB
- Number of memory slots: 1
- Memory slots type: SO-DIMM
- Memory clock speed: 3200 MHz
Storage
- Total storage capacity: 128 GB
- Storage media: SSD
- NVMe: Yes
Graphics
- Graphics card manufacturer: Intel
- Graphics card: UHD Graphics
Features
- Certification: UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA
Multimedia
- Built-in speaker(s): Yes
- Number of speakers: 2
Network
- Ethernet LAN: Yes
- Bluetooth: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- DC-in jack: Yes
Design
- Product colour: Grey
Performance
- Trusted Platform Module (TPM): Yes
- Trusted Platform Module (TPM) version: 2.0
Software
- Operating system installed: Windows 10
Power
- AC input voltage: 100-240 V
- AC input frequency: 50-60 Hz
- Power consumption (typical): 30 W
- Power supply: 65 W
Operational conditions
- Operating temperature (T-T): 0 - 35 °C
- Operating relative humidity (H-H): 10 - 90 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 0 - 95 %
Ergonomics

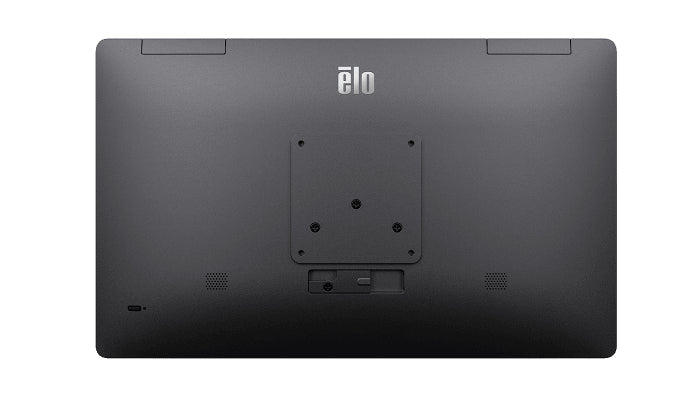

- VESA mounting: Yes
- Panel mounting interface: 75 x 75 mm
Weight & dimensions
- Width: 362.8 mm
- Depth: 20.2 mm
- Height: 223.4 mm
- Weight: 1600 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 460 mm
- Package depth: 178 mm
- Package height: 321 mm
- Package weight: 4000 g
Packaging content
- Cables included: Power
- Quick start guide: Yes
- Power adapter included: Yes
