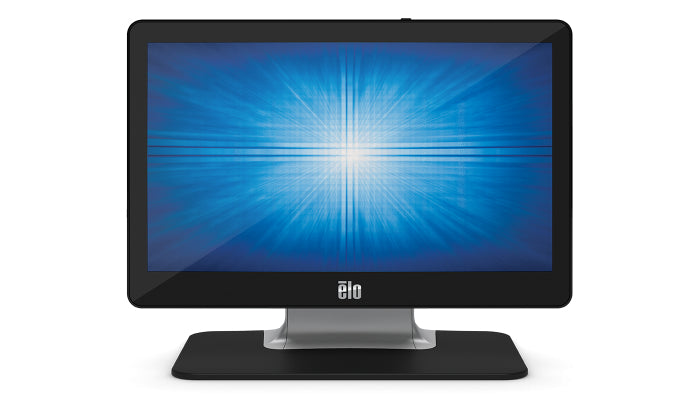

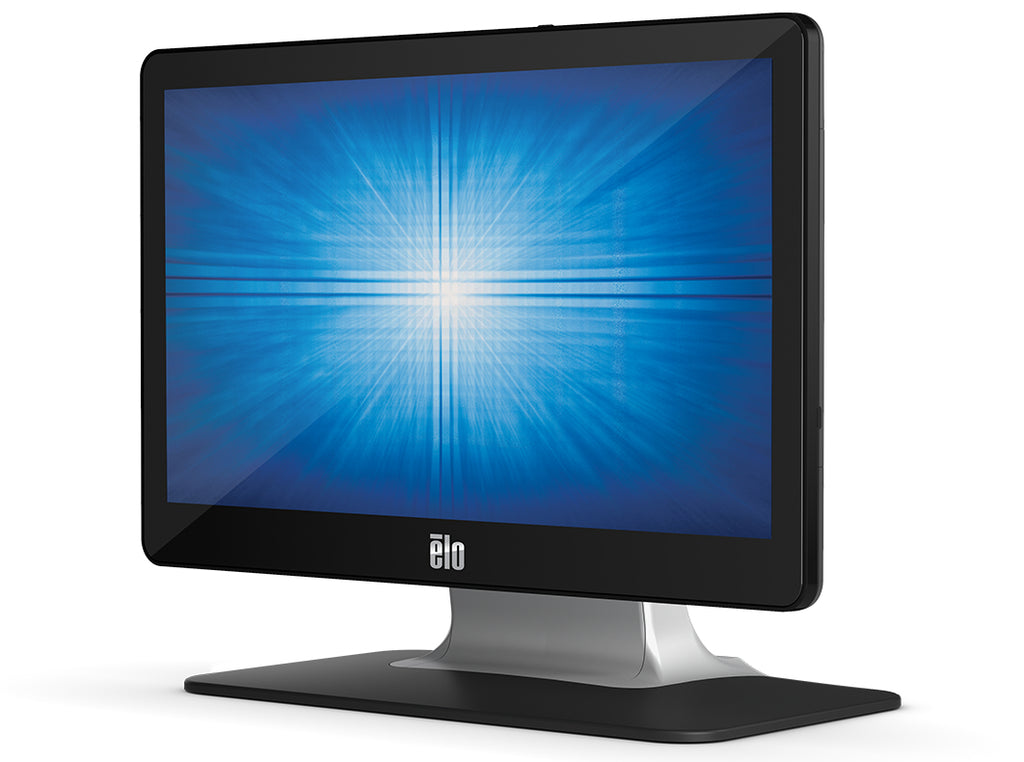

The Elo 1302L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1302L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
Display
- Display diagonal: 13.3 "
- Display technology: LCD
- Panel type: TFT
- Display resolution: 1920 x 1080 pixels
- Display brightness: 270 cd/m²
- HD type: Full HD
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 10
- Native aspect ratio: 16
- Response time: 25 ms
- Contrast ratio (typical): 800
- Viewing angle, horizontal: 170 °
- Viewing angle, vertical: 170 °
- Display number of colours: 16.78 million colours
- Supported graphics resolutions: 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080)
- Horizontal scan range: 30 - 75 kHz
Ports & interfaces
- HDMI ports quantity: 1
- HDMI version: 1.3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Audio
- Built-in speaker(s): Yes
- RMS rated power: 2 W
Design
- Product colour: White
- Screen shape: Flat
- VESA mounting: Yes
- Panel mounting interface: 75 x 75 mm
Performance
- On Screen Display (OSD): Yes
- International Protection (IP) code: IPX1
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 9.8 W
- Power consumption (off): 0.18 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 / 60 Hz
Weight & dimensions
- Width (with stand): 326.06 mm
- Depth (with stand): 150 mm
- Height (with stand): 259.57 mm
- Weight (with stand): 2320 g
Packaging data
- Package width: 405 mm
- Package depth: 160 mm
- Package height: 280 mm
- Package weight: 2890 g
Packaging content
- Cables included: AC,HDMI,USB
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 90 %
Certificates
- Certification: Australia RCM Canada cUL, IC China CCC Europe CE Japan VCCI Korea KCC Mexico NOM Taiwan BSMI United States UL, FCC International CB RoHS, China RoHS, WEEE, REACH Russia EAC
Logistics data
- Harmonized System (HS) code: 85285210
Features
- Wall mountable: Yes
Technical details
- Compliance certificates: RoHS
Other features
- Audio input: 1
- Depth (without stand): 25.05 mm
- Weight (without stand): 1220 g
- Height (without stand): 211.3 mm
- Power supply type: AC
- Viewable size, horizontal: 293.76 mm
- Viewable size, vertical: 165.24 mm
- Built-in camera: No
