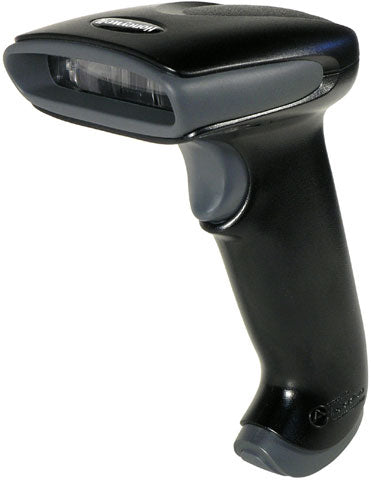

Featuring an ideal balance of performance, durability and ergonomics, the Hyperion 1300g linear-imaging scanner provides years of hassle-free scanning, especially in scan-intensive or light industrial applications. Fast intuitive reading of 13 mil bar codes out to 18 inches (457 mm), as well as reading of high density bar codes as small as 3 mil are both enabled in a single device, eliminating the need to purchase specialty scanners.
Scanning
- Scanner type: 1D
- Read rate (max): 270 reads/s
- Light levels (direct sunlight): 0 - 70000 lx
- Pitch reading angle: 65 - 65 °
- Decoding standards: 1D, GS1
- Maximum range: 0.66 m
Ports & interfaces
- Standard interfaces: RS232,PS/2
Performance
- Product colour: Black
Power
- Power consumption (standby): 0.6 W
- Input voltage: 5 V
- Power consumption: 200 mA
Weight & dimensions
- Weight: 160 g
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 0 - 95 %
Logistics data
- Harmonized System (HS) code: 84716070
Other features
- Dimensions (WxDxH): 79 x 112 x 150 mm
- Shockproof: Yes
- Safety: RoHS, CE
