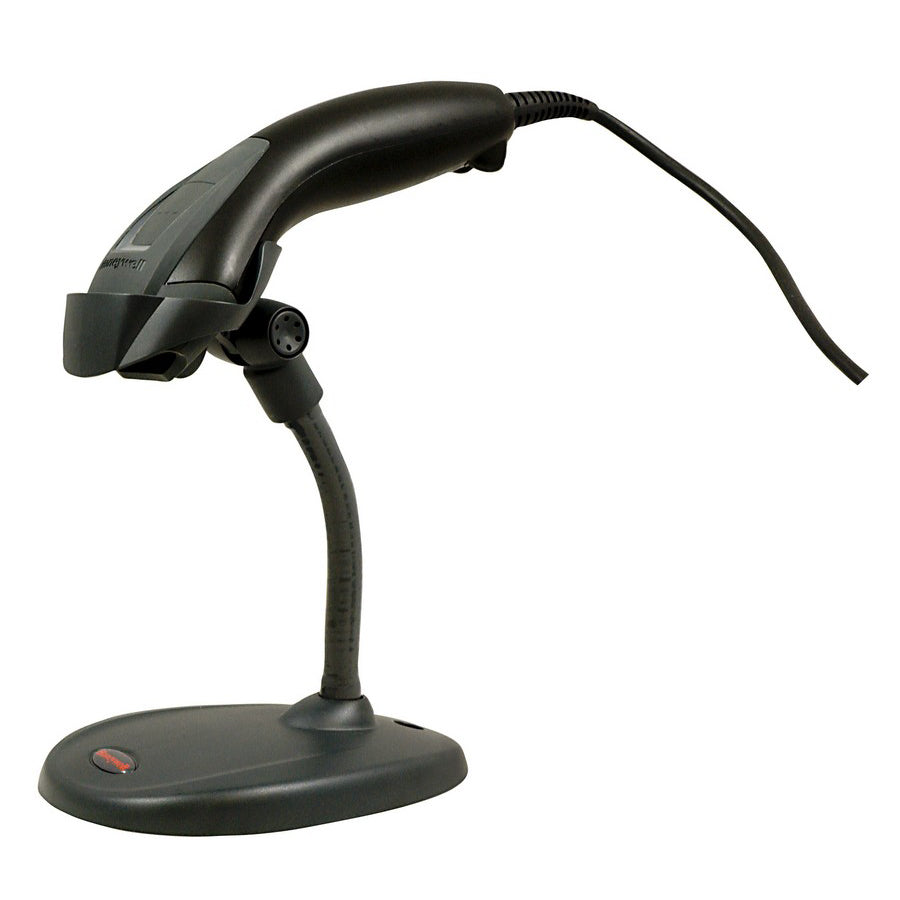

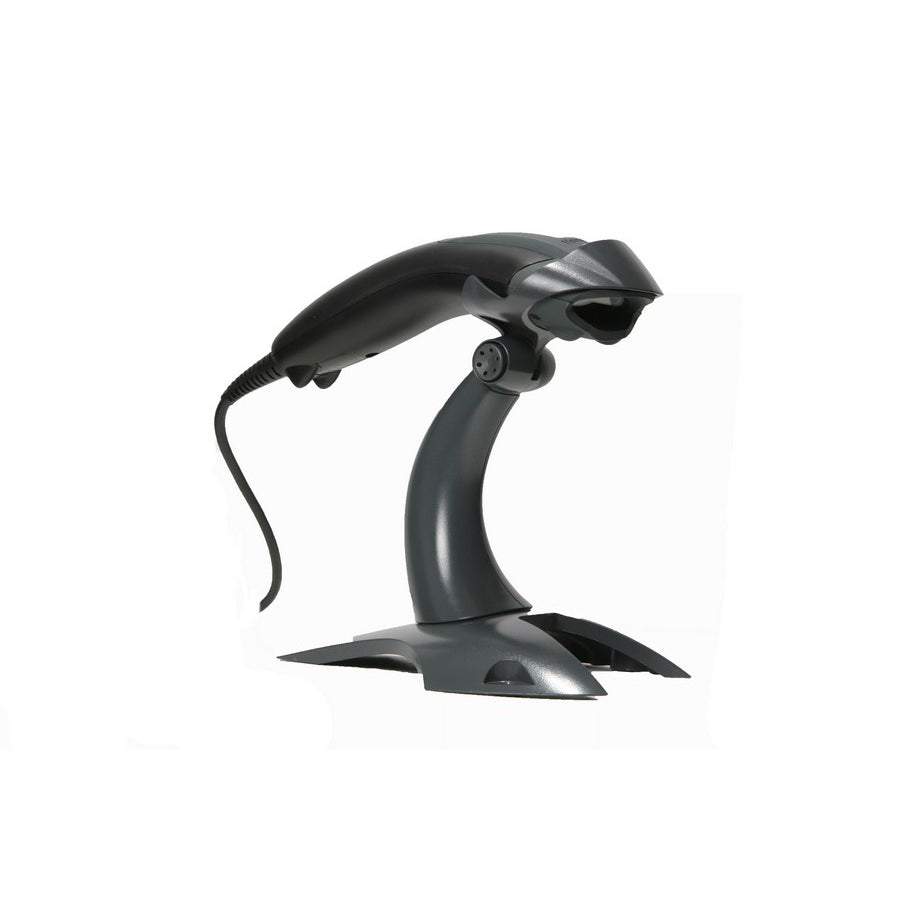

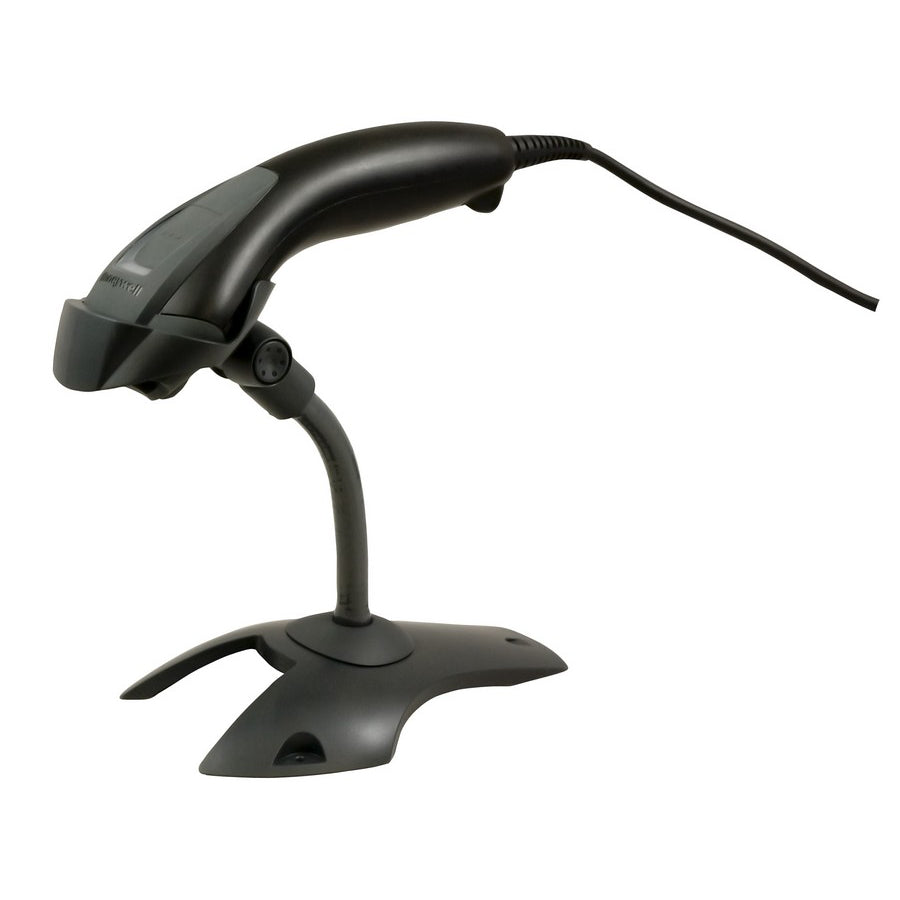

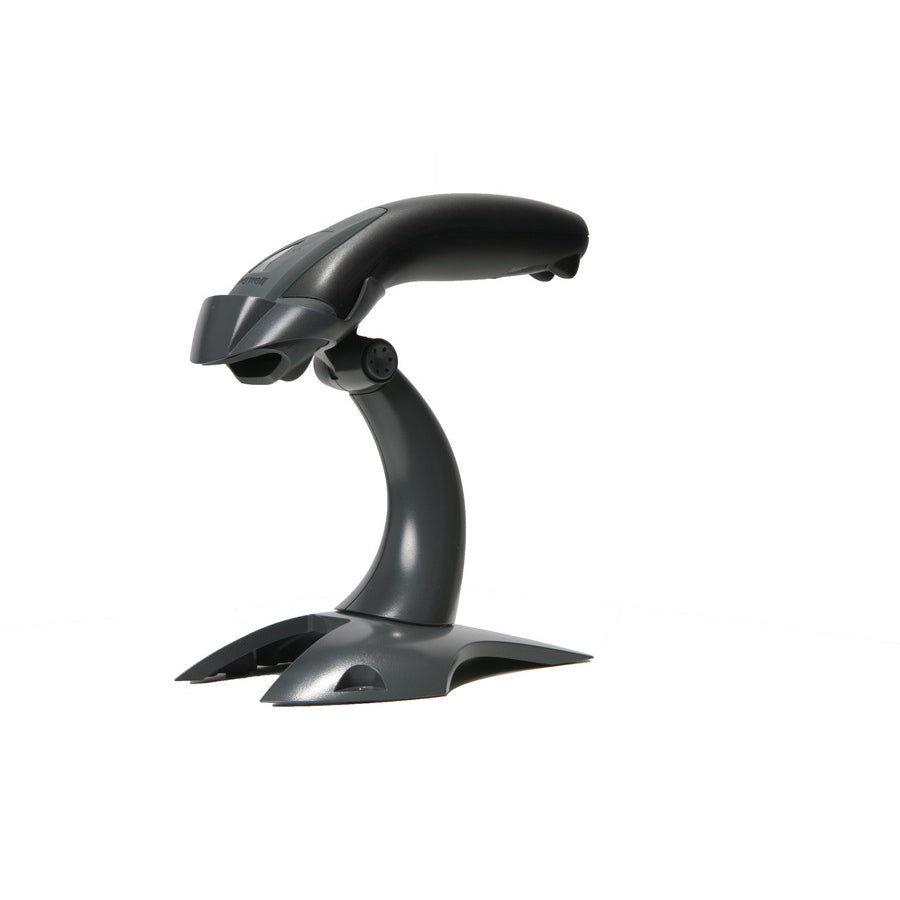

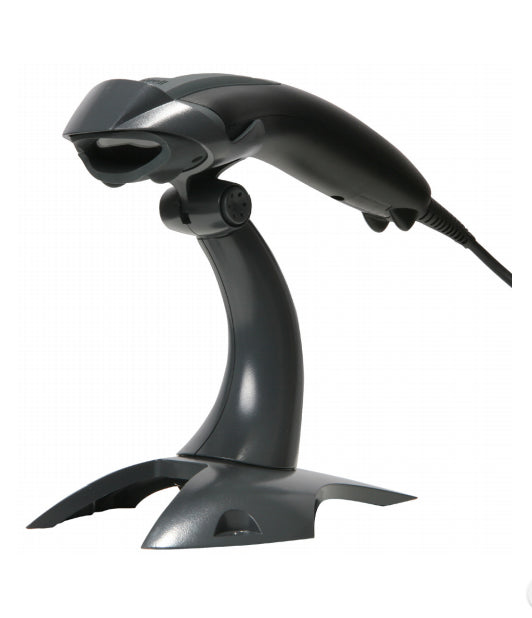

Built on the platform of the world’s best-selling single-line laser scanner, Honeywell’s Voyager® 1200g delivers aggressive scan performance on virtually all linear bar codes, including poor quality and damaged codes. Updated object detection, and automatic in-stand detection and configuration enable class-leading presentation scanning that maximizes throughput. Superior scan performance matched with a reliable design combine to provide a versatile linear scanning solution.
Outstanding scan performance on poor quality and damaged bar codes maintains productivity by providing a worry-free linear scanning solution that minimizes the need for manual data entry
Class-leading presentation scanning increases throughput by providing object detection and automatic in-stand detection and configuration
Superior out-of-box experience simplifies set up with tool-free stand assembly; automatic in-stand detection and configuration; and automatic interface detection and configuration
Contemporary, ergonomic design ensures operator comfort and productivity by incorporating an integrated finger groove in a sleek, lightweight industrial design that fits well in most hands
CodeGate® technology enables users to ensure that the desired bar code is scanned before transmitting data, making the scanner ideal for use in menu scanning applications
Multi-interface design minimizes costs by delivering support for USB, keyboard wedge, and RS232 interfaces in a single scanner
Scanning
- Type: Handheld bar code reader
- Scanner type: 1D
- Linear (1D) barcodes supported: GS1-128 (UCC/EAN-128)
- 2D (matrix & stacked) barcodes supported: Not supported
- Sensor type: Laser
- Read rate (max): 100 reads/s
- Light levels (direct sunlight): 0 - 70000 lx
- Pitch reading angle: 60 - 60 °
Ports & interfaces
- Connectivity technology: Wired
- Standard interfaces: RS-232,USB,Keyboard wedge
Performance
- Product colour: Black
- Housing material: Plastic
- LED indicators: Power
- Certification: CE DoC
Power
- Power source type: USB
- Power consumption (typical): 0.7 W
- Power consumption (standby): 0.35 W
- Input voltage: 5 V
Weight & dimensions
- Width: 180 mm
- Depth: 66 mm
- Height: 97 mm
- Weight: 125 g
Operational conditions
- Operating relative humidity (H-H): 0 - 95 %
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
Logistics data
- Harmonized System (HS) code: 84716070
Other features
- Shockproof: Yes
