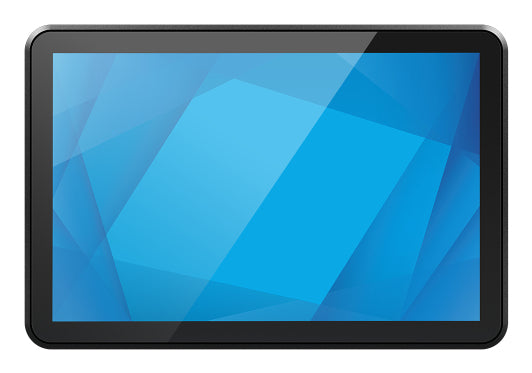

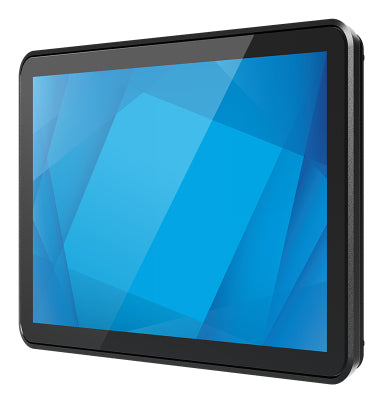

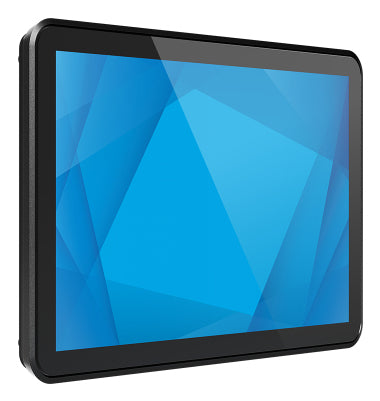

1064L 10-inch Industrial‑Grade
Open Frame Touch Display
Elo's 1064L 10-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1064L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Brilliant, optically-bonded
TouchPro™ PCAP display.
The 10-inch 1064L optically-bonded display offers an enhanced, 10-touch
tablet-like experience with the durability, touch performance and premium
optics required for industrial and commercial applications.
Enable power, video and touch
with a single USB‑C cable.
Durable, energy
efficient touchscreen.
Navigate the OSD directly
on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls –
Now you can use the touchscreen or the controls you are used to on the rear
side of the monitor.
Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and
harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With
touch thru technology, the display can be mounted behind a front layer of glass up
to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Designed for easy integration.
Elo’s 10-inch touchscreen monitor can be mounted in landscape, portrait and
upward facing orientations, providing optimal flexibility for integrating in any
counter, kiosk or cabinet design. Whether viewing up close or from a distance, our
optically bonded display offers what you need while maintaining optimal clarity for
the viewing experience.
Computing power that
scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute
engine that can easily connect to the display with a single USB-C. Boasting a small
footprint in both size and weight, the Elo Backpack can secure inside any kiosk with
the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and
form factors has never been easier.
Display
- Display diagonal: 10.1 "
- Display technology: LED
- LED backlight: Yes
- Panel type: TFT-LCD
- Display resolution: 1280 x 800 pixels
- Display brightness: 500 cd/m²
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Multi-touch: Yes
- Number of simultaneous touchpoints: 10
- Native aspect ratio: 16
- Response time: 29 ms
- Contrast ratio (typical): 800
- Viewing angle, horizontal: 178 °
- Viewing angle, vertical: 178 °
- Active display area (W x H): 216.96 x 135.6 mm
- Number of displays: 1
- Native refresh rate: 60 Hz
Ports & interfaces
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- USB port: Yes
- USB ports quantity: 1
- USB connector type: USB Type-C
- Ethernet LAN: No
Audio
- Built-in speaker(s): No
Design
- Product design: Digital signage flat panel
- Product colour: Black
- Placement supported: Indoor
- Orientation: Horizontal/Vertical
- Screen shape: Flat

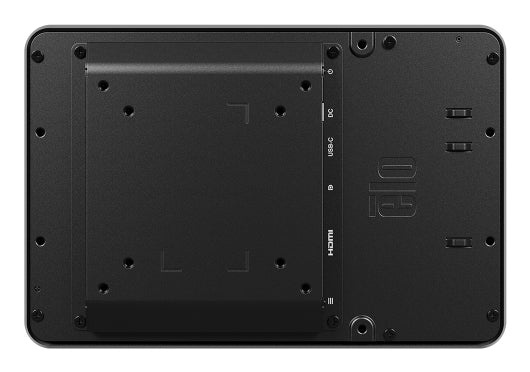

- VESA mounting: Yes
- Panel mounting interface: 75 x 75 mm
- Anti-glare screen: Yes
Performance
- On Screen Display (OSD): Yes
- Number of OSD languages: 8
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 6.52 W
- Power consumption (sleep): 0.45 W
- Power consumption (off): 0.25 W
- Energy efficiency class (SDR): D
- Energy consumption (SDR) per 1000 hours: 8 kWh
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Computer system
- Processor manufacturer: Intel
- Processor family: Intel® Celeron®
- Processor frequency: 2.9 GHz
- Processor cores: 2
- Internal memory: 4 GB
Weight & dimensions
- Display width: 240.4 mm
- Display depth: 32 mm
- Display height: 159 mm
- Display weight: 1250 g
Packaging data
- Package width: 315 mm
- Package depth: 144 mm
- Package height: 243 mm
- Package weight: 2430 g
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Logistics data
- Quantity per pack: 1 pc(s)
Technical details
- Compliance certificates: CE,Federal Communications Commission (FCC),CB,UKCA,CCC,China Compulsory Certification (CCC),VCCI,Norma Oficial Mexicana (NOM)
Other features
- Aspect ratio: 16
