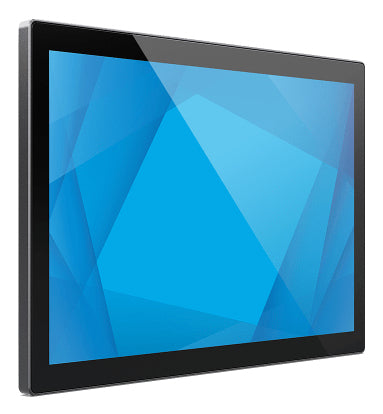

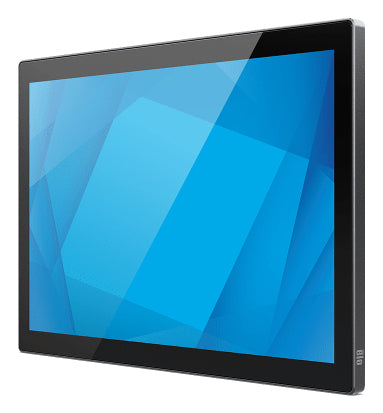

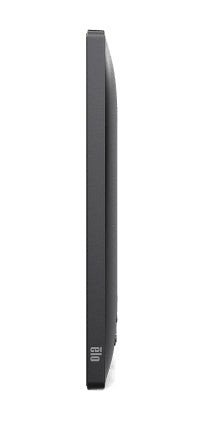

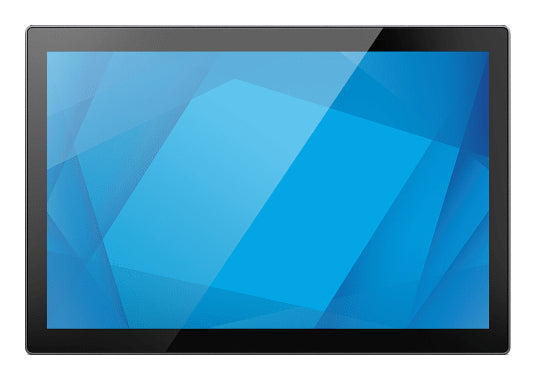

Razor thin design.
Brilliant touchscreen.
Built to be one of the thinnest commercial-grade 10-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the- art optical bonding - all with brilliant display clarity.

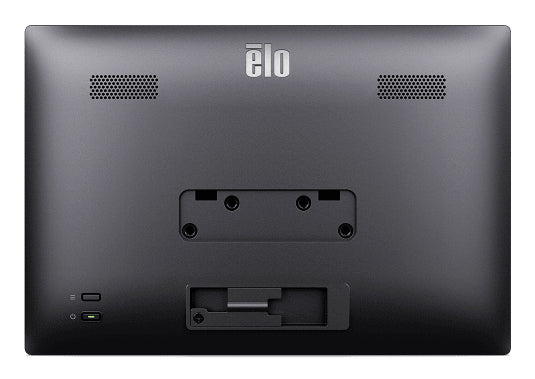

Secure your cables into place.
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.
A clean slate for touch experiences.

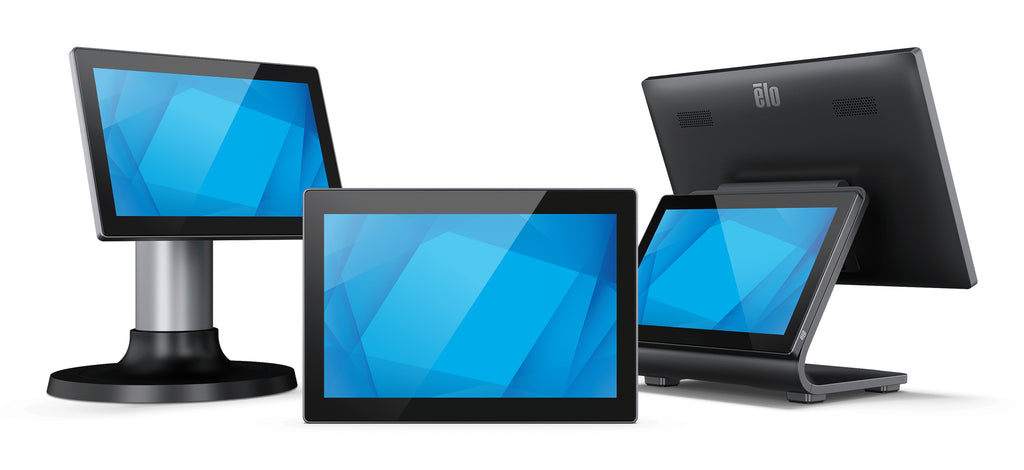

The perfect pairing for your POS terminal.
Whether you want to pair the 1004LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.
Get peace of mind with EloCare.SM
From advance unit replacement to extended warranties, EloCare delivers service and support from the peopl who know your Elo products best.
Display
- Display diagonal: 10 "
- Display technology: LED
- Panel type: TFT-LCD
- Display resolution: 1280 x 800 pixels
- Display brightness: 400 cd/m²
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 10
- Multi-touch: Yes
- Response time: 30 ms
- Contrast ratio (typical): 800
- Viewing angle, horizontal: 170 °
- Viewing angle, vertical: 170 °
- Display number of colours: 16.7 million colours
- Active display area (W x H): 216.96 x 135.6 mm
- Display diagonal (metric): 256.54 cm
- Number of displays: 1
- Native refresh rate: 60 Hz
- Horizontal scan range: 30 - 60 kHz
Ports & interfaces
- USB port: Yes
- USB connector type: USB Type-C
- Ethernet LAN: No
Audio
- Built-in speaker(s): Yes
- Number of built-in speakers: 2
- RMS rated power: 4 W
Design
- Product design: Digital signage flat panel
- Product colour: Grey

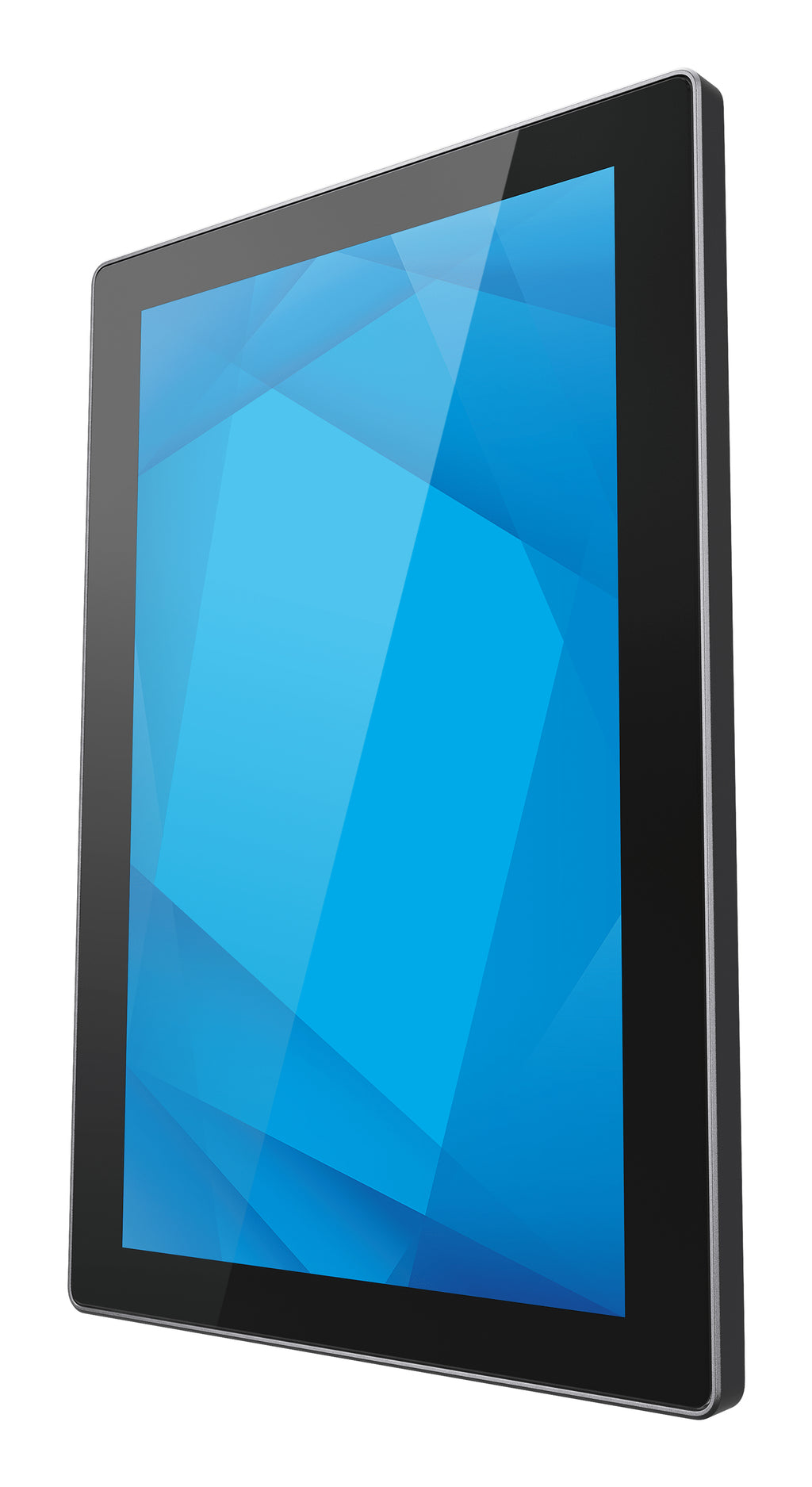

- Orientation: Horizontal/Vertical
- Screen shape: Flat

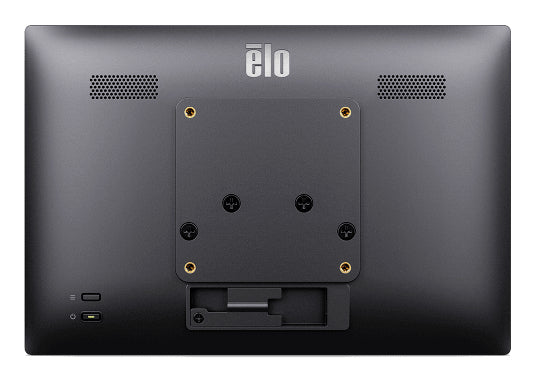

- VESA mounting: Yes
- Anti-glare screen: Yes
Performance
- Number of OSD languages: 8
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
- On Screen Display (OSD): Yes
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 6.6 W
- Power consumption (sleep): 0.8 W
- Power consumption (off): 0.15 W
- Energy efficiency class (SDR): D
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Energy efficiency scale: A to G
Weight & dimensions
- Display width: 239.94 mm
- Display depth: 15 mm
- Display height: 163 mm
- Display weight: 600 g
Packaging data
- Package width: 312 mm
- Package depth: 77 mm
- Package height: 222 mm
- Package weight: 1110 g
Packaging content
- Cables included: USB Type-C
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Logistics data
- Quantity per pack: 1 pc(s)
Other features
- Aspect ratio: 16
