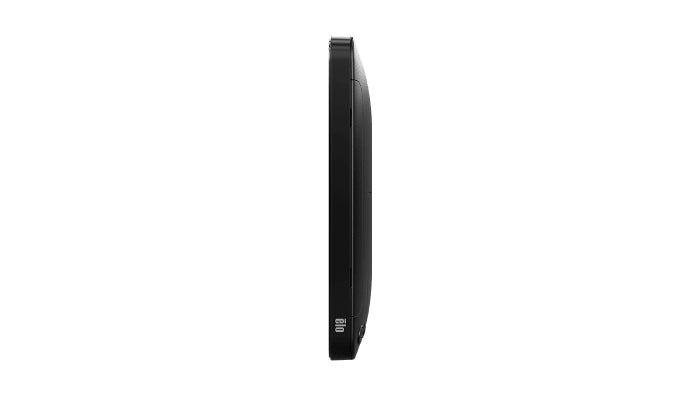

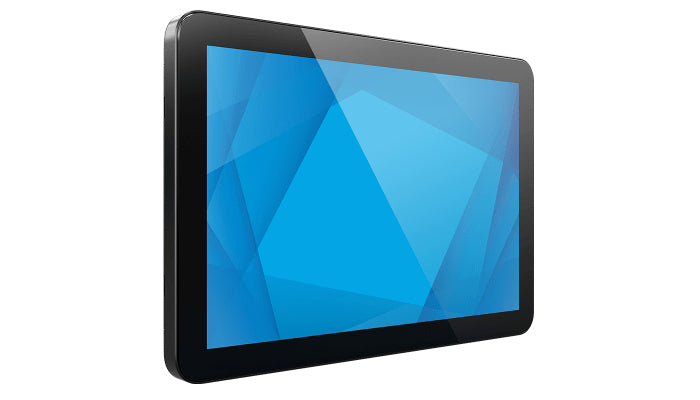

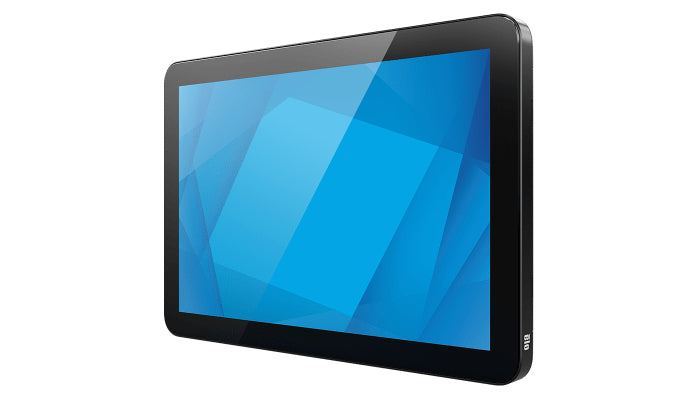

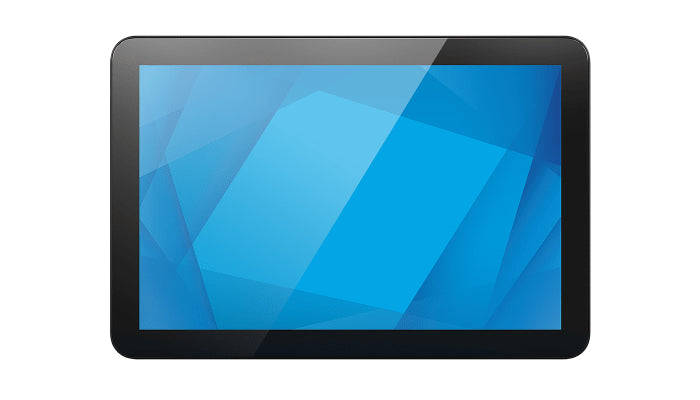

The 1004L touchmonitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 10” touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
Create the perfect payment stack with the 10" touchscreen.
Easily pair the 10-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7", the 1004L offers the perfect compact touch display with the connectivity you need at the point of sale.
Display
- Display diagonal: 10.1 "
- Display technology: LED
- Panel type: TFT-LCD
- Display resolution: 1280 x 800 pixels
- Display brightness: 360 cd/m²
- HD type: WXGA
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Multi-touch: Yes
- Number of simultaneous touchpoints: 10
- Response time: 30 ms
- Contrast ratio (typical): 800
- Viewing angle, horizontal: 170 °
- Viewing angle, vertical: 170 °
- Display number of colours: 16.7 million colours
- Active display area (W x H): 216.96 x 135.6 mm
- Display diagonal (metric): 26 cm
- Number of displays: 1
- Native refresh rate: 60 Hz
- Horizontal scan range: 30 - 80 kHz
Ports & interfaces
- HDMI ports quantity: 1
- DVI port: No
- USB port: Yes
- USB connector type: Micro-USB,USB Type-C
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 18 W
- Ethernet LAN: No
- DC-in jack: Yes
Audio
- Built-in speaker(s): Yes
- Number of built-in speakers: 2
- RMS rated power: 4 W
Design
- Product design: Digital signage flat panel
- Product colour: Black
- Orientation: Horizontal/Vertical
- Screen shape: Flat

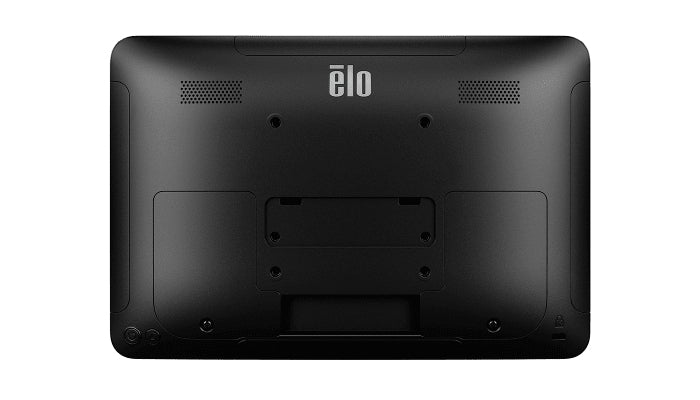

- VESA mounting: Yes
- Panel mounting interface: 75 x 75 mm
Performance
- Purpose: Universal
- On Screen Display (OSD): Yes
- On Screen Display (OSD) languages: CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN
- Number of OSD languages: 8
- International Protection (IP) code: IP54
- Mean time between failures (MTBF): 50000 h
Power
- Power consumption (typical): 6.5 W
- Power consumption (sleep): 1 W
- Power consumption (off): 0.25 W
- Energy efficiency class (SDR): D
- Energy consumption (SDR) per 1000 hours: 7 kWh
- Energy efficiency scale: A to G
Weight & dimensions
- Display width: 249 mm
- Display depth: 168 mm
- Display height: 25 mm
- Display weight: 900 g
Packaging data
- Package width: 308 mm
- Package depth: 143 mm
- Package height: 223 mm
- Package weight: 2200 g
Packaging content
- Cables included: HDMI,Power,USB Type-A to USB Type-C
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
