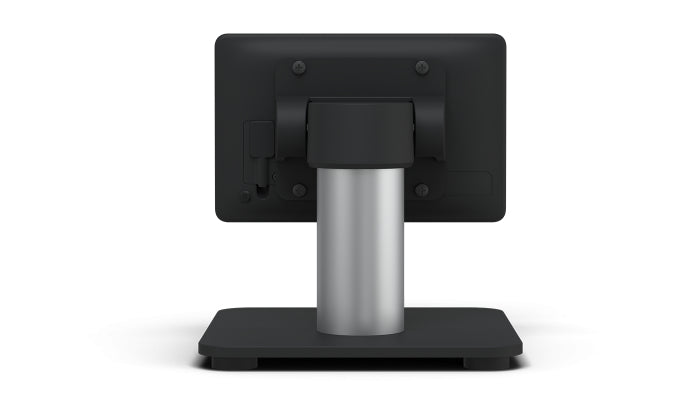

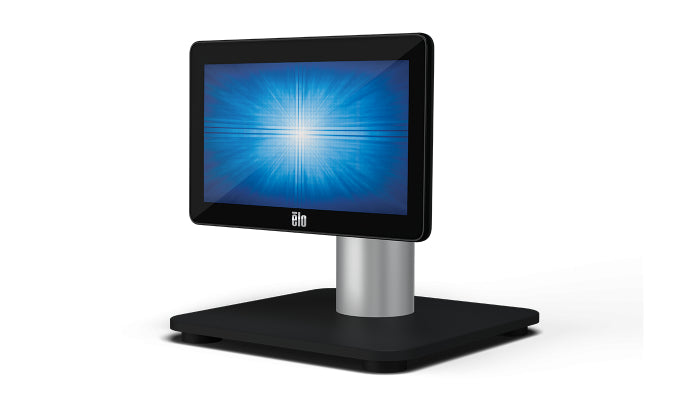

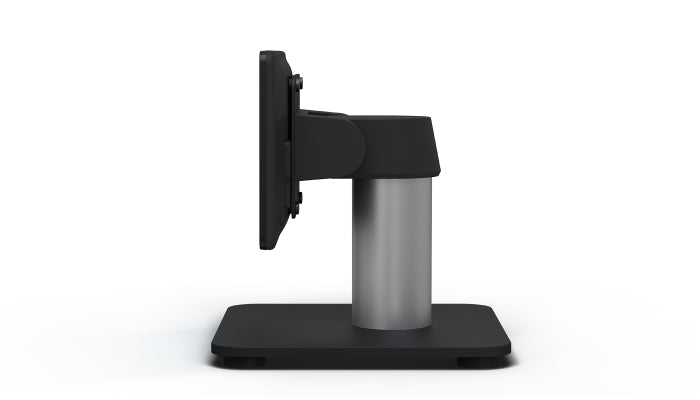

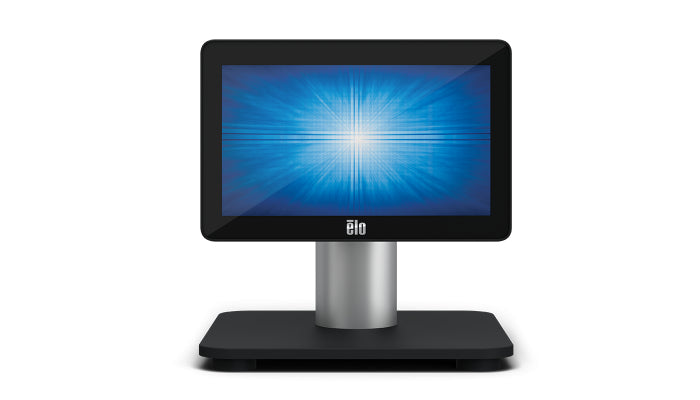

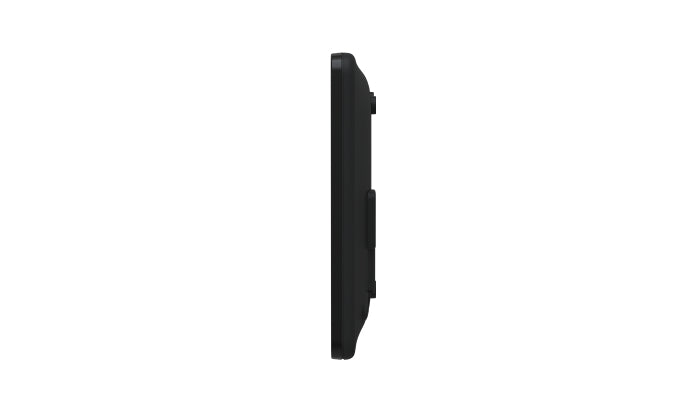

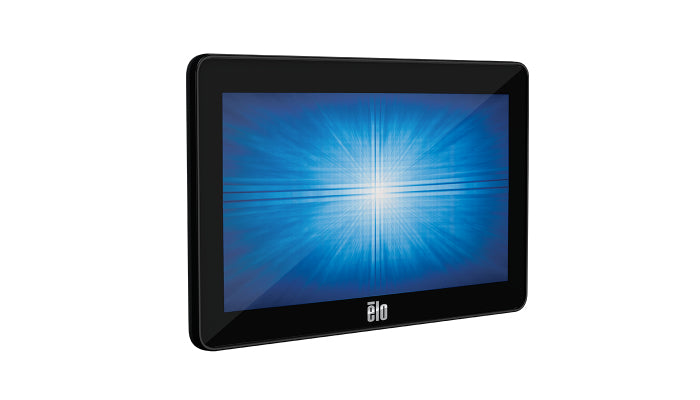

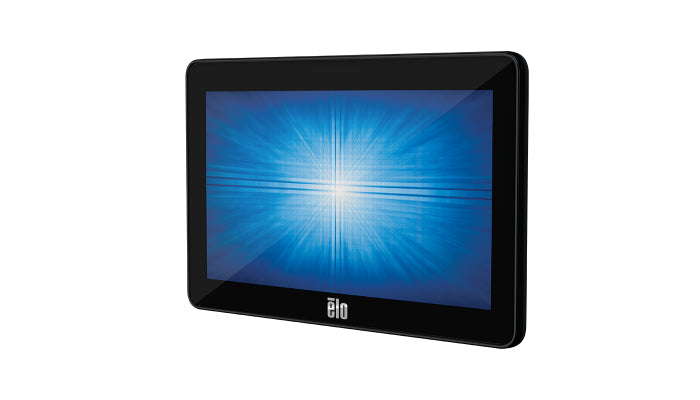

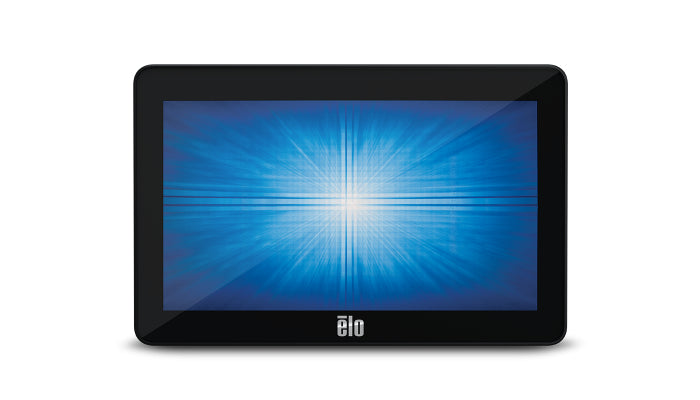

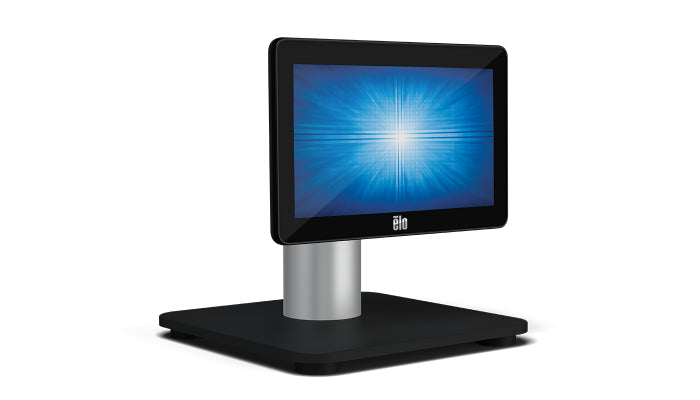

Touchscreen Monitor The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems.
Single-Cable Connection
Using DisplayLink technology, the 0702L provides a single-cable solution that combines power, video and touch signals into one USB connection. By reducing the number of cables from 3 to 1, installation is a breeze, and you never have to worry about a power adapter again. DisplayLink technology supports Windows, Android and Linux operating systems.
Well-Suited for…
Every business is different. Whether you need a customer-facing, point-of-sale touchscreen to display a transaction or an interactive display in a restaurant to enable guests to view the menu and make their orders, the 0702L provides the features to meet your installation needs with a modern, sleek aesthetic.
Mount With Flexibility
Customers demand a seamless shopping experience from the moment they enter the store through check-out. From stands and pole mounts to shelf mounts, wall mounts and 3rd-party VESA mounts, the touchscreens can be integrated with ease.
Brilliant Displays from 7 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution and light transmission for accurate touch response and vivid images. Capable of handling up to 10 simultaneous touches, the 02-Series touchscreen monitors provide an enhanced tablet-like experience.
EloCareSM – We Have Your Back
When a technology outage happens, retailers, restaurants and business operators want to know the right person to call, right away. EloCare offers services you can count on in case the unexpected happens.
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5 years. We pride ourselves on being one of the best manufacturers in the market—we design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our products, and your maximum ROI.
Display
- Display diagonal: 7 "
- Display technology: LCD/TFT
- Display resolution: 800 x 480 pixels
- Display brightness: 500 cd/m²
- Touchscreen: Yes
- Touchscreen technology: Projected capacitive system
- Number of simultaneous touchpoints: 10
- Response time: 25 ms
- Contrast ratio (typical): 500
- Viewing angle, horizontal: 150 °
- Viewing angle, vertical: 120 °
- Display number of colours: 16.2 million colours
Design
- Product colour: Black
- Screen shape: Flat
- VESA mounting: Yes
- Panel mounting interface: 75 x 75 mm
Performance
- International Protection (IP) code: IP54, IP65
Power
- Power consumption (typical): 3.7 W
- Power consumption (off): 1.9 W
Packaging data
- Package width: 232 mm
- Package depth: 95 mm
- Package height: 170 mm
- Package weight: 650 g
Packaging content
- Cables included: Micro-USB
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 95 %
Certificates
- Certification: cUL, IC, CCC, CE, FCC, UL, VCCI, CB, RCM, NOM
Logistics data
- Harmonized System (HS) code: 85285210
Features
- Wall mountable: Yes
Other features
- Micro-USB ports quantity: 1
- Maximum refresh rate: 60 Hz
- Height (without stand): 17.7 mm
- Weight (without stand): 350 g
- Display viewable area (HxV): 154.08 x 85.92 mm
- Quick start guide: Yes
- Aspect ratio: 5
- Depth (without stand): 117.22 mm
