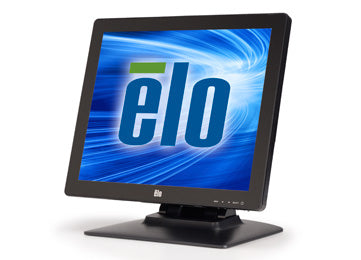

The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.
- Integrated peripheral options include a Magnetic Stripe Reader (MSR), RFID reader and webcam
- Integrated cable management
- iTouch Plus surface acoustic wave (SAW) touchscreen couples zero-bezel design with multi-touch functionality
- Dual position stand - single hinge with high/low settings and tilt functionality
- Desktop, wall or VESA mounting
- Internal speakers
Display
- Display diagonal: 17 "
- Display resolution: 1280 x 1024 pixels
- Display brightness: 225 cd/m²
- Touchscreen: Yes
- Touchscreen technology: Surface acoustic wave
- Native aspect ratio: 5
- Response time: 30 ms
- Contrast ratio (typical): 800
- Viewing angle, horizontal: 170 °
- Viewing angle, vertical: 160 °
- Display number of colours: 16.78 million colours
- Supported graphics resolutions: 720 x 400,1024 x 768 (XGA),1280 x 1024 (SXGA),640 x 480 (VGA),800 x 600 (SVGA)
Ports & interfaces
- HDMI ports quantity: 0
- DisplayPorts quantity: 0
Audio
- Built-in speaker(s): Yes
Design
- Product colour: Black
- Screen shape: Flat
- Panel mounting interface: 75 x 75 mm
Performance
- Mean time between failures (MTBF): 50000 h
Weight & dimensions
- Width (with stand): 391 mm
- Depth (with stand): 360 mm
- Height (with stand): 209 mm
- Weight (with stand): 5210 g
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 80 %
- Storage temperature (T-T): -20 - 60 °C
- Storage relative humidity (H-H): 10 - 90 %
Logistics data
- Harmonized System (HS) code: 85285210
Features
- Wall mountable: Yes
Other features
- Aspect ratio: 5
- Dimensions (W x D x H) with stand: 391 x 360 x 209 mm
- Display viewable area (HxV): 337 x 270 mm
